IteratorStack Class Referenceabstract

#include <IteratorStack.hpp>

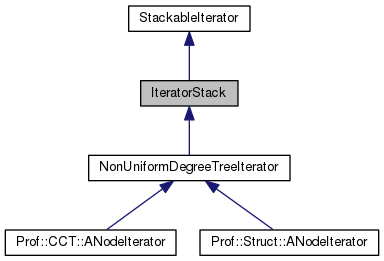

Inheritance diagram for IteratorStack:
Inheritance graph
[legend]
Collaboration diagram for IteratorStack:
Collaboration graph
[legend]

Public Types

enum  TraversalOrder {
  Unordered, PreOrder, PostOrder, ReversePreOrder,
  ReversePostOrder, PreAndPostOrder
}


Public Member Functions

 IteratorStack (TraversalOrder torder, IterStackEnumType enumType=ITER_STACK_ENUM_ALL_NODES)

 ~IteratorStack ()

void * CurrentUpCall () const

void operator++ (int)

void operator++ ()

void Reset ()

void Reset (TraversalOrder torder, IterStackEnumType enumType=ITER_STACK_ENUM_ALL_NODES)

void ReConstruct (TraversalOrder torder, IterStackEnumType enumType=ITER_STACK_ENUM_ALL_NODES)

bool IsValid () const

virtual TraversalVisitType VisitType () const

TraversalOrder GetTraversalOrder () const

virtual bool IterationIsForward () const

void DumpUpCall ()

void Dump ()


Protected Member Functions

void Push (StackableIterator *)

StackableIterator * Top (void) const

StackableIterator * GetIteratorAtPosition (unsigned int depth) const

void FreeTop ()

int Depth () const


Protected Attributes

TraversalOrder clientTraversalOrder

IterStackEnumType enumType


Private Member Functions

virtual StackableIterator * IteratorToPushIfAny (void *current)=0

void FreeStack (int maxDepth)

void InitTraversal (TraversalOrder torder, IterStackEnumType enumType)


Private Attributes

struct IteratorStackS * iteratorStackRepr

TraversalOrder traversalOrder


Detailed Description

Definition at line 94 of file IteratorStack.hpp.

Member Enumeration Documentation

◆ TraversalOrder

enum IteratorStack::TraversalOrder
Enumerator
Unordered
PreOrder
PostOrder
ReversePreOrder
ReversePostOrder
PreAndPostOrder

Definition at line 96 of file IteratorStack.hpp.

Constructor & Destructor Documentation

◆ IteratorStack()

IteratorStack::IteratorStack ( TraversalOrder  torder,
IterStackEnumType  enumType = ITER_STACK_ENUM_ALL_NODES
)

Definition at line 79 of file IteratorStack.cpp.

◆ ~IteratorStack()

IteratorStack::~IteratorStack ( )

Definition at line 87 of file IteratorStack.cpp.

Member Function Documentation

◆ CurrentUpCall()

void * IteratorStack::CurrentUpCall ( ) const
virtual

Implements StackableIterator.

Reimplemented in NonUniformDegreeTreeIterator.

Definition at line 188 of file IteratorStack.cpp.

Here is the call graph for this function:

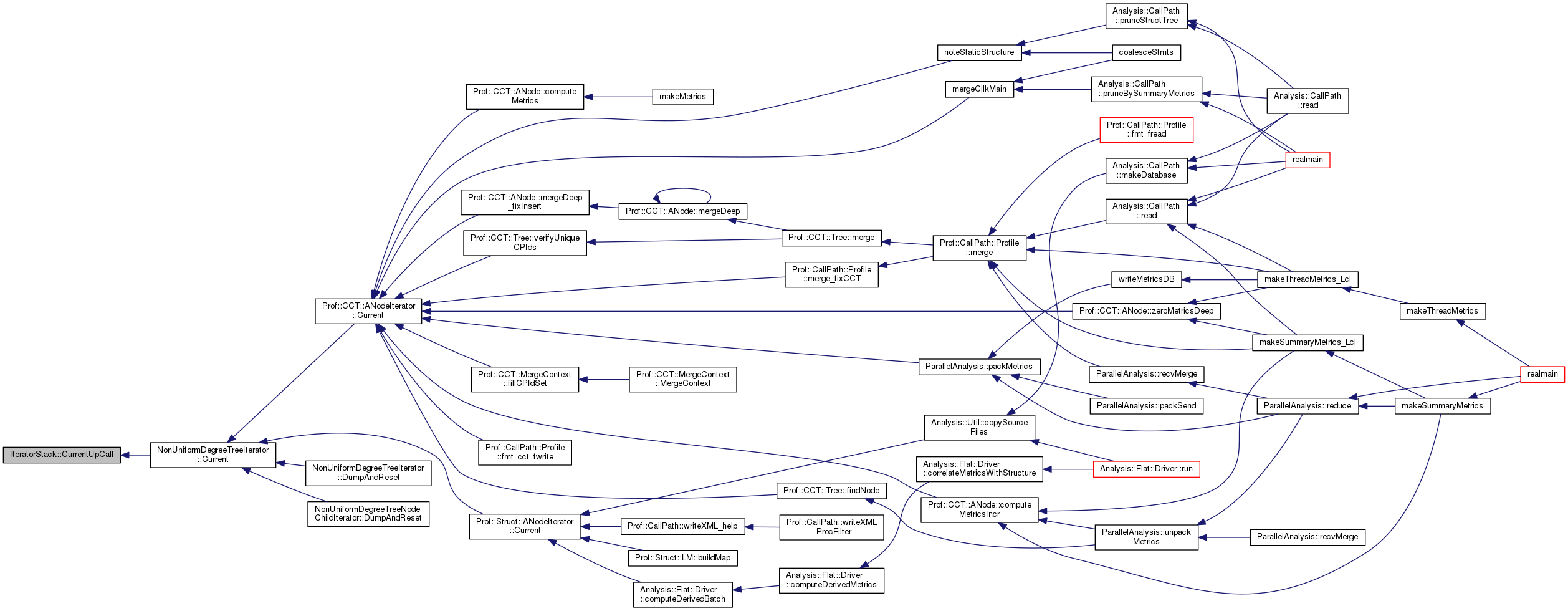

Here is the caller graph for this function:

◆ Depth()

int IteratorStack::Depth ( ) const
protected

Definition at line 250 of file IteratorStack.cpp.

◆ Dump()

void StackableIterator::Dump ( )
inherited

Definition at line 101 of file StackableIterator.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ DumpUpCall()

void IteratorStack::DumpUpCall ( )
virtual

Reimplemented from StackableIterator.

Definition at line 296 of file IteratorStack.cpp.

Here is the call graph for this function:

◆ FreeStack()

void IteratorStack::FreeStack ( int  maxDepth)
private

Definition at line 267 of file IteratorStack.cpp.

◆ FreeTop()

void IteratorStack::FreeTop ( )
protected

Definition at line 256 of file IteratorStack.cpp.

◆ GetIteratorAtPosition()

StackableIterator * IteratorStack::GetIteratorAtPosition ( unsigned int  depth) const
protected

Definition at line 98 of file IteratorStack.cpp.

◆ GetTraversalOrder()

IteratorStack::TraversalOrder IteratorStack::GetTraversalOrder ( ) const

Definition at line 228 of file IteratorStack.cpp.

Here is the caller graph for this function:

◆ InitTraversal()

void IteratorStack::InitTraversal ( TraversalOrder  torder,
IterStackEnumType  enumType
)
private

Definition at line 275 of file IteratorStack.cpp.

◆ IsValid()

bool IteratorStack::IsValid ( ) const
virtual

Reimplemented from StackableIterator.

Definition at line 195 of file IteratorStack.cpp.

Here is the call graph for this function:

◆ IterationIsForward()

bool IteratorStack::IterationIsForward ( ) const
virtual

Definition at line 233 of file IteratorStack.cpp.

Here is the caller graph for this function:

◆ IteratorToPushIfAny()

virtual StackableIterator* IteratorStack::IteratorToPushIfAny ( void *  current)
privatepure virtual

Implemented in NonUniformDegreeTreeIterator.

◆ operator++() [1/2]

void IteratorStack::operator++ ( int  )

Definition at line 125 of file IteratorStack.cpp.

Here is the call graph for this function:

◆ operator++() [2/2]

void IteratorStack::operator++ ( )
virtual

Implements StackableIterator.

Definition at line 119 of file IteratorStack.cpp.

◆ Push()

void IteratorStack::Push ( StackableIterator *  newtop)
protected

Definition at line 104 of file IteratorStack.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ ReConstruct()

void IteratorStack::ReConstruct ( TraversalOrder  torder,
IterStackEnumType  enumType = ITER_STACK_ENUM_ALL_NODES
)

Definition at line 162 of file IteratorStack.cpp.

◆ Reset() [1/2]

void IteratorStack::Reset ( void  )
virtual

Implements StackableIterator.

Definition at line 170 of file IteratorStack.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ Reset() [2/2]

void IteratorStack::Reset ( TraversalOrder  torder,
IterStackEnumType  enumType = ITER_STACK_ENUM_ALL_NODES
)

Definition at line 181 of file IteratorStack.cpp.

◆ Top()

StackableIterator * IteratorStack::Top ( void  ) const
protected

Definition at line 93 of file IteratorStack.cpp.

Here is the caller graph for this function:

◆ VisitType()

TraversalVisitType IteratorStack::VisitType ( ) const
virtual

Definition at line 201 of file IteratorStack.cpp.

Here is the call graph for this function:

Member Data Documentation

◆ clientTraversalOrder

TraversalOrder IteratorStack::clientTraversalOrder
protected

Definition at line 129 of file IteratorStack.hpp.

◆ enumType

IterStackEnumType IteratorStack::enumType
protected

Definition at line 130 of file IteratorStack.hpp.

◆ iteratorStackRepr

struct IteratorStackS* IteratorStack::iteratorStackRepr
private

Definition at line 145 of file IteratorStack.hpp.

◆ traversalOrder

TraversalOrder IteratorStack::traversalOrder
private

Definition at line 146 of file IteratorStack.hpp.

The documentation for this class was generated from the following files:
