com.jcraft.jsch.ChannelSubsystem Class Reference

A channel connected to a subsystem of the server process. More...

Inheritance diagram for com.jcraft.jsch.ChannelSubsystem:

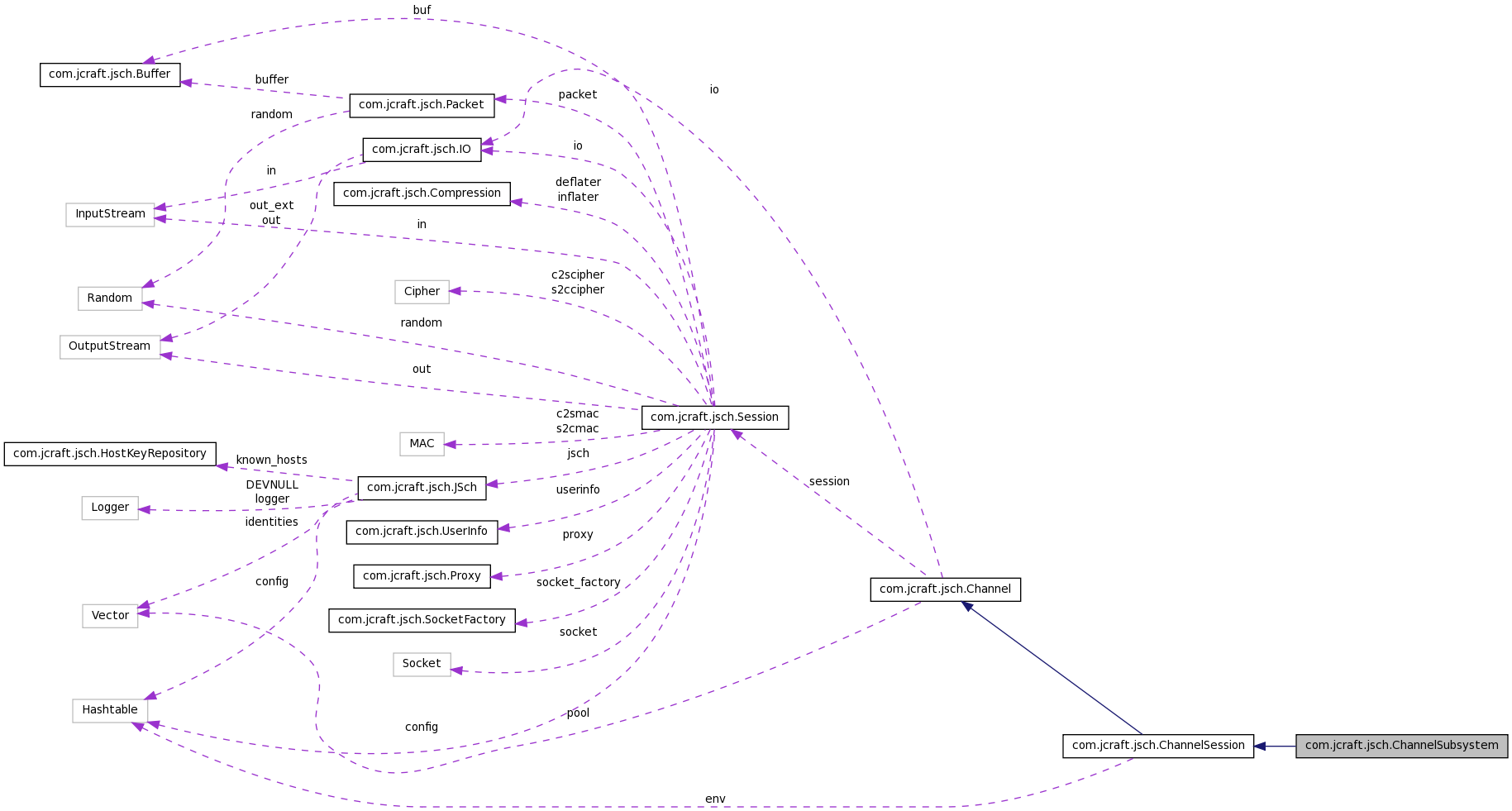

Collaboration diagram for com.jcraft.jsch.ChannelSubsystem:

Public Member Functions
void	setXForwarding (boolean foo)
	Enable the X11 forwarding.
void	setPty (boolean foo)
	Allocate a Pseudo-Terminal.
void	setWantReply (boolean foo)
	Indicates whether we want a confirmation/error reply to this request.
void	setSubsystem (String foo)
	Sets the name of the remote subsystem name.
void	start () throws JSchException
void	setErrStream (java.io.OutputStream out)
	Sets the error stream.
java.io.InputStream	getErrStream () throws java.io.IOException
	Gets the error stream.
void	setAgentForwarding (boolean enable)
	Enable the agent forwarding.
void	setEnv (Hashtable env)
void	setEnv (String name, String value)
	Set the environment variable.
void	setEnv (byte[] name, byte[] value)
	Set the environment variable.
void	setTerminalMode (byte[] terminal_mode)
	Set the terminal mode.
void	setPtySize (int col, int row, int wp, int hp)
	Change the window dimension interactively.
void	setPtyType (String ttype)
	Set the terminal type.
void	setPtyType (String ttype, int col, int row, int wp, int hp)
	Set the terminal type.
void	run ()
	not to be called by the application.
void	connect () throws JSchException
	Opens the channel without any timeout.
Protected Member Functions
void	sendRequests () throws Exception
	creates and sends all requests indicated by the properties agentForwarding, xForwarding, pty (and ptyType) and env.
Protected Attributes
boolean	agent_forwarding = false
Hashtable	env = null
String	ttype = "vt100"
int	tcol = 80
int	trow = 24
int	twp = 640
int	thp = 480
byte[]	terminal_mode = null
byte[]	type = Util.str2byte("foo")
Package Functions
void	init () throws JSchException
synchronized void	setRecipient (int foo)
int	getRecipient ()
Static Package Functions
static Channel	getChannel (String type)
	Creates a new Channel of specified type.
static Channel	getChannel (int id, Session session)
	Retrieves a channel from the channel pool.
static void	del (Channel c)
	Removes a channel from the channel pool.
Package Attributes
boolean	xforwading = false
boolean	pty = false
boolean	want_reply = true
String	subsystem = ""
int	id
volatile int	recipient = -1
volatile int	lwsize_max = 0x100000
volatile int	lwsize = lwsize_max
volatile int	lmpsize = 0x4000
volatile long	rwsize = 0
volatile int	rmpsize = 0
IO	io = null
Thread	thread = null
volatile boolean	eof_local = false
volatile boolean	eof_remote = false
volatile boolean	close = false
volatile boolean	connected = false
volatile boolean	open_confirmation = false
volatile int	exitstatus = -1
volatile int	reply = 0
volatile int	connectTimeout = 0
int	notifyme = 0
Static Package Attributes
static final int	SSH_MSG_CHANNEL_OPEN_CONFIRMATION = 91
static final int	SSH_MSG_CHANNEL_OPEN_FAILURE = 92
static final int	SSH_MSG_CHANNEL_WINDOW_ADJUST = 93
static final int	SSH_OPEN_ADMINISTRATIVELY_PROHIBITED = 1
static final int	SSH_OPEN_CONNECT_FAILED = 2
static final int	SSH_OPEN_UNKNOWN_CHANNEL_TYPE = 3
static final int	SSH_OPEN_RESOURCE_SHORTAGE = 4
static int	index = 0

Detailed Description

A channel connected to a subsystem of the server process.

Such a channel is created with:

    ChannelExec channel = (ChannelExec)session. openChannel("subsystem");
    channel. setSubsystem(cmd);

See also:: RFC 4254, section 6.5. Starting a Shell or a Command; ChannelSftp

Definition at line 46 of file ChannelSubsystem.java.

Member Function Documentation

void com.jcraft.jsch.Channel.connect ( ) throws JSchException [inherited]

Opens the channel without any timeout.

This is equivalent to connect(0) if not overridden in subclasses.

Reimplemented in com.jcraft.jsch.ChannelDirectTCPIP.

Definition at line 174 of file Channel.java.

Referenced by edu.rice.cs.hpc.remote.tunnel.SSHManager.sendCommand().

static void com.jcraft.jsch.Channel.del ( Channel c ) [static, package, inherited]

Removes a channel from the channel pool.

Definition at line 116 of file Channel.java.

References com.jcraft.jsch.Channel.pool.

static Channel com.jcraft.jsch.Channel.getChannel	(	int	id,
		Session	session
	)			`[static, package, inherited]`

Retrieves a channel from the channel pool.

Parameters:

	id	the session-specific identifier of the channel
	session	the session with which the channel is associated.

Definition at line 103 of file Channel.java.

References com.jcraft.jsch.Channel.id, com.jcraft.jsch.Channel.pool, and com.jcraft.jsch.Channel.session.

static Channel com.jcraft.jsch.Channel.getChannel ( String type ) [static, package, inherited]

Creates a new Channel of specified type.

This factory method is used by Session#openChannel to create channels.

Definition at line 67 of file Channel.java.

java.io.InputStream com.jcraft.jsch.ChannelSubsystem.getErrStream ( ) throws java.io.IOException

Gets the error stream.

The standard error output of the remote process can be read from this stream.

This method is a polling alternative to setErrStream.

Definition at line 130 of file ChannelSubsystem.java.

int com.jcraft.jsch.Channel.getRecipient ( ) [package, inherited]

Definition at line 162 of file Channel.java.

References com.jcraft.jsch.Channel.recipient.

Referenced by com.jcraft.jsch.ChannelDirectTCPIP.connect(), com.jcraft.jsch.RequestX11.request(), com.jcraft.jsch.RequestWindowChange.request(), com.jcraft.jsch.RequestSubsystem.request(), com.jcraft.jsch.RequestSignal.request(), com.jcraft.jsch.RequestShell.request(), com.jcraft.jsch.RequestSftp.request(), com.jcraft.jsch.RequestPtyReq.request(), com.jcraft.jsch.RequestExec.request(), com.jcraft.jsch.RequestEnv.request(), and com.jcraft.jsch.RequestAgentForwarding.request().

void com.jcraft.jsch.ChannelSubsystem.init ( ) throws JSchException [package]

Reimplemented from com.jcraft.jsch.Channel.

Definition at line 109 of file ChannelSubsystem.java.

References com.jcraft.jsch.Channel.io, com.jcraft.jsch.IO.setInputStream(), and com.jcraft.jsch.IO.setOutputStream().

void com.jcraft.jsch.ChannelSession.run ( ) [inherited]

not to be called by the application.

Runs the main data transfer loop.

Definition at line 252 of file ChannelSession.java.

References com.jcraft.jsch.Buffer.buffer, com.jcraft.jsch.Channel.close, com.jcraft.jsch.IO.in, com.jcraft.jsch.Channel.io, com.jcraft.jsch.Buffer.putByte(), com.jcraft.jsch.Channel.recipient, com.jcraft.jsch.Packet.reset(), com.jcraft.jsch.Channel.rmpsize, and com.jcraft.jsch.Channel.thread.

void com.jcraft.jsch.ChannelSession.sendRequests ( ) throws Exception [protected, inherited]

creates and sends all requests indicated by the properties agentForwarding, xForwarding, pty (and ptyType) and env.

Definition at line 205 of file ChannelSession.java.

Referenced by com.jcraft.jsch.ChannelShell.start(), and com.jcraft.jsch.ChannelExec.start().

void com.jcraft.jsch.ChannelSession.setAgentForwarding ( boolean enable ) [inherited]

Enable the agent forwarding.

Parameters:

enable

Definition at line 67 of file ChannelSession.java.

References com.jcraft.jsch.ChannelSession.agent_forwarding.

void com.jcraft.jsch.ChannelSession.setEnv	(	byte[]	name,
		byte[]	value
	)			`[inherited]`

Set the environment variable.

Parameters:

	name	A name of environment variable.
	value	A value of environment variable.

See also:: setEnv(String, String); RFC4254 6.4 Environment Variable Passing

Definition at line 114 of file ChannelSession.java.

References com.jcraft.jsch.ChannelSession.getEnv().

void com.jcraft.jsch.ChannelSession.setEnv	(	String	name,
		String	value
	)			`[inherited]`

Set the environment variable.

If name and value are needed to be passed to the remote in your faivorite encoding,use setEnv(byte[], byte[]).

Parameters:

	name	A name for environment variable.
	value	A value for environment variable.

See also:: RFC4254 6.4 Environment Variable Passing

Definition at line 102 of file ChannelSession.java.

References com.jcraft.jsch.ChannelSession.setEnv().

void com.jcraft.jsch.ChannelSession.setEnv ( Hashtable env ) [inherited]

Deprecated:: Use setEnv(String, String) or setEnv(byte[], byte[]) instead.

See also:: setEnv(String, String); setEnv(byte[], byte[])

Definition at line 86 of file ChannelSession.java.

Referenced by com.jcraft.jsch.ChannelSession.setEnv().

void com.jcraft.jsch.ChannelSubsystem.setErrStream ( java.io.OutputStream out )

Sets the error stream.

The standard error output of the remote process will be sent to this stream.

The stream will be closed on disconnect.

Definition at line 120 of file ChannelSubsystem.java.

void com.jcraft.jsch.ChannelSubsystem.setPty ( boolean enable )

Allocate a Pseudo-Terminal.

Parameters:

enable

See also:: RFC4254 6.2. Requesting a Pseudo-Terminal

Reimplemented from com.jcraft.jsch.ChannelSession.

Definition at line 54 of file ChannelSubsystem.java.

References com.jcraft.jsch.ChannelSubsystem.pty.

void com.jcraft.jsch.ChannelSession.setPtySize	(	int	col,
		int	row,
		int	wp,
		int	hp
	)			`[inherited]`

Change the window dimension interactively.

Parameters:

	col	terminal width, columns
	row	terminal height, rows
	wp	terminal width, pixels
	hp	terminal height, pixels

See also:: RFC4254 6.7. Window Dimension Change Message

Definition at line 154 of file ChannelSession.java.

References com.jcraft.jsch.ChannelSession.pty, com.jcraft.jsch.RequestWindowChange.request(), com.jcraft.jsch.ChannelSession.setPtyType(), com.jcraft.jsch.RequestWindowChange.setSize(), and com.jcraft.jsch.ChannelSession.ttype.

void com.jcraft.jsch.ChannelSession.setPtyType	(	String	ttype,
		int	col,
		int	row,
		int	wp,
		int	hp
	)			`[inherited]`

Set the terminal type.

This method is not effective after Channel.connect().

Parameters:

	ttype	terminal type(for example, "vt100")
	col	terminal width, columns
	row	terminal height, rows
	wp	terminal width, pixels
	hp	terminal height, pixels

Definition at line 190 of file ChannelSession.java.

References com.jcraft.jsch.ChannelSession.tcol, com.jcraft.jsch.ChannelSession.thp, com.jcraft.jsch.ChannelSession.trow, and com.jcraft.jsch.ChannelSession.twp.

void com.jcraft.jsch.ChannelSession.setPtyType ( String ttype ) [inherited]

Set the terminal type.

This method is not effective after Channel.connect().

Parameters:

ttype

terminal type(for example, "vt100")

See also:: setPtyType(String, int, int, int, int)

Definition at line 176 of file ChannelSession.java.

Referenced by com.jcraft.jsch.ChannelSession.setPtySize().

synchronized void com.jcraft.jsch.Channel.setRecipient ( int foo ) [package, inherited]

Definition at line 157 of file Channel.java.

References com.jcraft.jsch.Channel.notifyme, and com.jcraft.jsch.Channel.recipient.

Referenced by com.jcraft.jsch.ChannelForwardedTCPIP.getData().

void com.jcraft.jsch.ChannelSubsystem.setSubsystem ( String foo )

Sets the name of the remote subsystem name.

Parameters:

foo

the name of the subsystem. It should consist of only printable ASCII characters and be a subsystem name recognized by the remote server process.

See also:: RFC 4250, section 4.6.1 Conventions for Names

Definition at line 72 of file ChannelSubsystem.java.

References com.jcraft.jsch.ChannelSubsystem.subsystem.

void com.jcraft.jsch.ChannelSession.setTerminalMode ( byte[] terminal_mode ) [inherited]

Set the terminal mode.

Parameters:

terminal_mode

Definition at line 141 of file ChannelSession.java.

void com.jcraft.jsch.ChannelSubsystem.setWantReply ( boolean foo )

Indicates whether we want a confirmation/error reply to this request.

(I have no idea what the difference is, and the method is called neither in the library nor the examples.) The default is true.

Definition at line 62 of file ChannelSubsystem.java.

References com.jcraft.jsch.ChannelSubsystem.want_reply.

void com.jcraft.jsch.ChannelSubsystem.setXForwarding ( boolean enable )

Enable the X11 forwarding.

Parameters:

enable

See also:: RFC4254 6.3.1. Requesting X11 Forwarding

Reimplemented from com.jcraft.jsch.ChannelSession.

Definition at line 52 of file ChannelSubsystem.java.

References com.jcraft.jsch.ChannelSubsystem.xforwading.

void com.jcraft.jsch.ChannelSubsystem.start ( ) throws JSchException

Definition at line 76 of file ChannelSubsystem.java.

References com.jcraft.jsch.ChannelSession._session, com.jcraft.jsch.Session.daemon_thread, com.jcraft.jsch.Session.host, com.jcraft.jsch.IO.in, com.jcraft.jsch.Channel.io, com.jcraft.jsch.ChannelSubsystem.pty, com.jcraft.jsch.Request.request(), com.jcraft.jsch.ChannelSubsystem.subsystem, com.jcraft.jsch.Channel.thread, com.jcraft.jsch.ChannelSubsystem.want_reply, and com.jcraft.jsch.ChannelSubsystem.xforwading.

Member Data Documentation

boolean com.jcraft.jsch.ChannelSession.agent_forwarding = false [protected, inherited]

Definition at line 43 of file ChannelSession.java.

Referenced by com.jcraft.jsch.ChannelSession.sendRequests(), and com.jcraft.jsch.ChannelSession.setAgentForwarding().

volatile boolean com.jcraft.jsch.Channel.close = false [package, inherited]

Definition at line 138 of file Channel.java.

Referenced by com.jcraft.jsch.ChannelX11.run(), com.jcraft.jsch.ChannelSession.run(), com.jcraft.jsch.ChannelForwardedTCPIP.run(), com.jcraft.jsch.ChannelDirectTCPIP.run(), and com.jcraft.jsch.ChannelAgentForwarding.run().

volatile boolean com.jcraft.jsch.Channel.connected = false [package, inherited]

Definition at line 139 of file Channel.java.

Referenced by com.jcraft.jsch.ChannelAgentForwarding.ChannelAgentForwarding(), com.jcraft.jsch.ChannelForwardedTCPIP.ChannelForwardedTCPIP(), com.jcraft.jsch.ChannelX11.ChannelX11(), and com.jcraft.jsch.ChannelDirectTCPIP.connect().

volatile int com.jcraft.jsch.Channel.connectTimeout = 0 [package, inherited]

Definition at line 145 of file Channel.java.

Referenced by com.jcraft.jsch.ChannelDirectTCPIP.connect(), com.jcraft.jsch.Request.request(), and com.jcraft.jsch.Request.write().

Hashtable com.jcraft.jsch.ChannelSession.env = null [protected, inherited]

Definition at line 45 of file ChannelSession.java.

Referenced by com.jcraft.jsch.ChannelSession.getEnv(), and com.jcraft.jsch.ChannelSession.sendRequests().

volatile boolean com.jcraft.jsch.Channel.eof_local = false [package, inherited]

Definition at line 135 of file Channel.java.

volatile boolean com.jcraft.jsch.Channel.eof_remote = false [package, inherited]

Definition at line 136 of file Channel.java.

volatile int com.jcraft.jsch.Channel.exitstatus = -1 [package, inherited]

Definition at line 142 of file Channel.java.

Referenced by com.jcraft.jsch.PortWatcher.run().

int com.jcraft.jsch.Channel.id [package, inherited]

Definition at line 122 of file Channel.java.

Referenced by com.jcraft.jsch.Channel.getChannel().

int com.jcraft.jsch.Channel.index = 0 [static, package, inherited]

Definition at line 60 of file Channel.java.

Referenced by com.jcraft.jsch.Channel.Channel().

IO com.jcraft.jsch.Channel.io = null [package, inherited]

Definition at line 132 of file Channel.java.

volatile int com.jcraft.jsch.Channel.lmpsize = 0x4000 [package, inherited]

Definition at line 127 of file Channel.java.

Referenced by com.jcraft.jsch.ChannelDirectTCPIP.connect().

volatile int com.jcraft.jsch.Channel.lwsize = lwsize_max [package, inherited]

Definition at line 126 of file Channel.java.

Referenced by com.jcraft.jsch.ChannelDirectTCPIP.connect().

volatile int com.jcraft.jsch.Channel.lwsize_max = 0x100000 [package, inherited]

Definition at line 125 of file Channel.java.

int com.jcraft.jsch.Channel.notifyme = 0 [package, inherited]

Definition at line 149 of file Channel.java.

Referenced by com.jcraft.jsch.ChannelDirectTCPIP.connect(), and com.jcraft.jsch.Channel.setRecipient().

volatile boolean com.jcraft.jsch.Channel.open_confirmation = false [package, inherited]

Definition at line 140 of file Channel.java.

Referenced by com.jcraft.jsch.ChannelDirectTCPIP.connect().

boolean com.jcraft.jsch.ChannelSubsystem.pty = false [package]

Reimplemented from com.jcraft.jsch.ChannelSession.

Definition at line 48 of file ChannelSubsystem.java.

Referenced by com.jcraft.jsch.ChannelSubsystem.setPty(), and com.jcraft.jsch.ChannelSubsystem.start().

volatile int com.jcraft.jsch.Channel.recipient = -1 [package, inherited]

Definition at line 123 of file Channel.java.

Referenced by com.jcraft.jsch.Channel.getRecipient(), com.jcraft.jsch.ChannelX11.run(), com.jcraft.jsch.ChannelSession.run(), com.jcraft.jsch.ChannelForwardedTCPIP.run(), com.jcraft.jsch.ChannelDirectTCPIP.run(), com.jcraft.jsch.ChannelAgentForwarding.send(), and com.jcraft.jsch.Channel.setRecipient().

volatile int com.jcraft.jsch.Channel.reply = 0 [package, inherited]

Definition at line 144 of file Channel.java.

Referenced by com.jcraft.jsch.Request.write().

volatile int com.jcraft.jsch.Channel.rmpsize = 0 [package, inherited]

Definition at line 130 of file Channel.java.

Referenced by com.jcraft.jsch.ChannelX11.run(), com.jcraft.jsch.ChannelSession.run(), com.jcraft.jsch.ChannelForwardedTCPIP.run(), com.jcraft.jsch.ChannelDirectTCPIP.run(), and com.jcraft.jsch.ChannelAgentForwarding.write().

volatile long com.jcraft.jsch.Channel.rwsize = 0 [package, inherited]

Definition at line 129 of file Channel.java.

final int com.jcraft.jsch.Channel.SSH_MSG_CHANNEL_OPEN_CONFIRMATION = 91 [static, package, inherited]

Definition at line 51 of file Channel.java.

final int com.jcraft.jsch.Channel.SSH_MSG_CHANNEL_OPEN_FAILURE = 92 [static, package, inherited]

Definition at line 52 of file Channel.java.

final int com.jcraft.jsch.Channel.SSH_MSG_CHANNEL_WINDOW_ADJUST = 93 [static, package, inherited]

Definition at line 53 of file Channel.java.

final int com.jcraft.jsch.Channel.SSH_OPEN_ADMINISTRATIVELY_PROHIBITED = 1 [static, package, inherited]

Definition at line 55 of file Channel.java.

Referenced by com.jcraft.jsch.ChannelX11.run(), and com.jcraft.jsch.ChannelForwardedTCPIP.run().

final int com.jcraft.jsch.Channel.SSH_OPEN_CONNECT_FAILED = 2 [static, package, inherited]

Definition at line 56 of file Channel.java.

final int com.jcraft.jsch.Channel.SSH_OPEN_RESOURCE_SHORTAGE = 4 [static, package, inherited]

Definition at line 58 of file Channel.java.

final int com.jcraft.jsch.Channel.SSH_OPEN_UNKNOWN_CHANNEL_TYPE = 3 [static, package, inherited]

Definition at line 57 of file Channel.java.

String com.jcraft.jsch.ChannelSubsystem.subsystem = "" [package]

Definition at line 50 of file ChannelSubsystem.java.

Referenced by com.jcraft.jsch.ChannelSubsystem.setSubsystem(), and com.jcraft.jsch.ChannelSubsystem.start().

int com.jcraft.jsch.ChannelSession.tcol = 80 [protected, inherited]

Definition at line 50 of file ChannelSession.java.

Referenced by com.jcraft.jsch.ChannelSession.sendRequests(), and com.jcraft.jsch.ChannelSession.setPtyType().

byte [] com.jcraft.jsch.ChannelSession.terminal_mode = null [protected, inherited]

Definition at line 54 of file ChannelSession.java.

Referenced by com.jcraft.jsch.ChannelSession.sendRequests().

int com.jcraft.jsch.ChannelSession.thp = 480 [protected, inherited]

Definition at line 53 of file ChannelSession.java.

Referenced by com.jcraft.jsch.ChannelSession.sendRequests(), and com.jcraft.jsch.ChannelSession.setPtyType().

Thread com.jcraft.jsch.Channel.thread = null [package, inherited]

Definition at line 133 of file Channel.java.

Referenced by com.jcraft.jsch.ChannelDirectTCPIP.connect(), com.jcraft.jsch.ChannelX11.run(), com.jcraft.jsch.ChannelSession.run(), com.jcraft.jsch.ChannelForwardedTCPIP.run(), com.jcraft.jsch.ChannelDirectTCPIP.run(), com.jcraft.jsch.ChannelSubsystem.start(), com.jcraft.jsch.ChannelShell.start(), com.jcraft.jsch.ChannelExec.start(), and com.jcraft.jsch.ChannelX11.write().

int com.jcraft.jsch.ChannelSession.trow = 24 [protected, inherited]

Definition at line 51 of file ChannelSession.java.

Referenced by com.jcraft.jsch.ChannelSession.sendRequests(), and com.jcraft.jsch.ChannelSession.setPtyType().

String com.jcraft.jsch.ChannelSession.ttype = "vt100" [protected, inherited]

Definition at line 49 of file ChannelSession.java.

Referenced by com.jcraft.jsch.ChannelSession.sendRequests(), and com.jcraft.jsch.ChannelSession.setPtySize().

int com.jcraft.jsch.ChannelSession.twp = 640 [protected, inherited]

Definition at line 52 of file ChannelSession.java.

Referenced by com.jcraft.jsch.ChannelSession.sendRequests(), and com.jcraft.jsch.ChannelSession.setPtyType().

byte [] com.jcraft.jsch.Channel.type = Util.str2byte("foo") [protected, inherited]

Definition at line 124 of file Channel.java.

Referenced by com.jcraft.jsch.ChannelAgentForwarding.ChannelAgentForwarding(), com.jcraft.jsch.ChannelSession.ChannelSession(), and com.jcraft.jsch.ChannelX11.ChannelX11().

boolean com.jcraft.jsch.ChannelSubsystem.want_reply = true [package]

Definition at line 49 of file ChannelSubsystem.java.

Referenced by com.jcraft.jsch.ChannelSubsystem.setWantReply(), and com.jcraft.jsch.ChannelSubsystem.start().

boolean com.jcraft.jsch.ChannelSubsystem.xforwading = false [package]

Reimplemented from com.jcraft.jsch.ChannelSession.

Definition at line 47 of file ChannelSubsystem.java.

Referenced by com.jcraft.jsch.ChannelSubsystem.setXForwarding(), and com.jcraft.jsch.ChannelSubsystem.start().

The documentation for this class was generated from the following file:

edu.rice.cs.hpc.remote/external/com/jcraft/jsch/ChannelSubsystem.java

com.jcraft.jsch.ChannelSubsystem Class Reference

Public Member Functions

Protected Member Functions

Protected Attributes

Package Functions

Static Package Functions

Package Attributes

Static Package Attributes

Detailed Description

Member Function Documentation

Member Data Documentation
