xml_utils.cpp File Reference

#include <iostream>
#include <sstream>
#include "xml_utils.h"
#include "format_output.h"
#include "arrange_profiles.h"
#include "op_bfd.h"
#include "cverb.h"

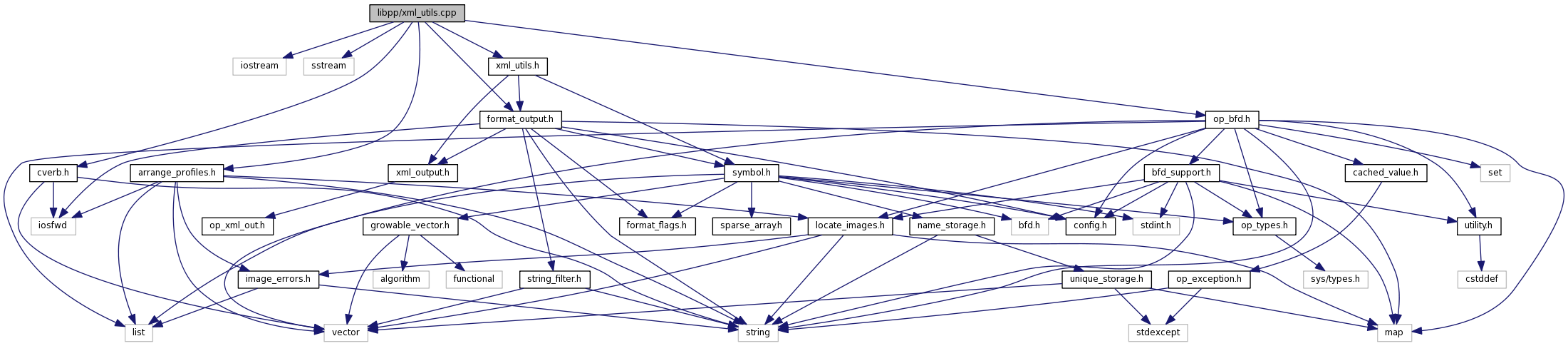

Include dependency graph for xml_utils.cpp:

Go to the source code of this file.

Data Structures
class	subclass_info_t
class	module_info
class	thread_info
class	process_info
class	process_root_info
class	binary_info
class	binary_root_info
Typedefs
typedef growable_vector < subclass_info_t >	subclass_array_t
typedef growable_vector < subclass_array_t >	event_subclass_t
typedef growable_vector < event_subclass_t >	cpu_subclass_t
Functions
string	get_counts_string (count_array_t const &counts, size_t begin, size_t end)
size_t	get_next_tgid_pclass (size_t start)
size_t	get_next_tid_pclass (size_t start)
void	build_process_tree ()
Variables
bool	want_xml = false
size_t	nr_classes = 0
size_t	nr_cpus = 0
size_t	nr_events = 0
sym_iterator	symbols_begin
sym_iterator	symbols_end
format_output::xml_formatter *	xml_out
xml_utils *	xml_support
ostringstream	xml_options
static process_root_info	processes_root
static binary_root_info	binaries_root

---

Detailed Description

utility routines for generating XML

Remarks:

Copyright 2006 OProfile authors

Read the file COPYING

Author:

Dave Nomura

Definition in file xml_utils.cpp.

---

Typedef Documentation

typedef growable_vector<event_subclass_t> cpu_subclass_t

Definition at line 280 of file xml_utils.cpp.

typedef growable_vector<subclass_array_t> event_subclass_t

Definition at line 279 of file xml_utils.cpp.

typedef growable_vector<subclass_info_t> subclass_array_t

Definition at line 278 of file xml_utils.cpp.

---

Function Documentation

void build_process_tree

(

)

Definition at line 994 of file xml_utils.cpp.

References process_root_info::add_process(), process_info::add_thread(), classes, get_next_tgid_pclass(), get_next_tid_pclass(), nr_classes, and profile_classes::v.

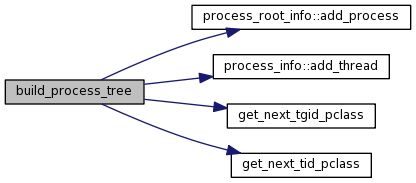

Here is the call graph for this function:

string get_counts_string	(	count_array_t const &	counts,
		size_t	begin,
		size_t	end
	)

Definition at line 346 of file xml_utils.cpp.

References nr_cpus.

size_t get_next_tgid_pclass

(

size_t

start

)

Definition at line 968 of file xml_utils.cpp.

References classes, nr_classes, and profile_classes::v.

Referenced by build_process_tree().

Here is the caller graph for this function:

size_t get_next_tid_pclass

(

size_t

start

)

Definition at line 979 of file xml_utils.cpp.

References classes, nr_classes, and profile_classes::v.

Referenced by build_process_tree().

Here is the caller graph for this function:

---

Variable Documentation

binary_root_info binaries_root [static]

Definition at line 527 of file xml_utils.cpp.

size_t nr_classes = 0

Definition at line 24 of file xml_utils.cpp.

Referenced by binary_info::add_module_symbol(), binary_info::build_binary(), build_process_tree(), get_next_tgid_pclass(), get_next_tid_pclass(), and xml_utils::xml_utils().

size_t nr_cpus = 0

Definition at line 25 of file xml_utils.cpp.

Referenced by get_counts_string(), xml_utils::set_nr_cpus(), and xml_utils::xml_utils().

size_t nr_events = 0

Definition at line 26 of file xml_utils.cpp.

Referenced by do_test(), and xml_utils::set_nr_events().

process_root_info processes_root [static]

Definition at line 526 of file xml_utils.cpp.

sym_iterator symbols_begin

Definition at line 27 of file xml_utils.cpp.

Referenced by binary_root_info::summarize_binaries(), process_root_info::summarize_processes(), and xml_utils::xml_utils().

sym_iterator symbols_end

Definition at line 28 of file xml_utils.cpp.

Referenced by process_root_info::set_process_end(), binary_root_info::summarize_binaries(), process_root_info::summarize_processes(), and xml_utils::xml_utils().

bool want_xml = false

Definition at line 22 of file xml_utils.cpp.

Referenced by arrange_profiles(), describe_cpu(), describe_header(), main(), and operator<().

ostringstream xml_options

Definition at line 34 of file xml_utils.cpp.

Referenced by xml_utils::add_option().

format_output::xml_formatter* xml_out

Definition at line 30 of file xml_utils.cpp.

xml_utils* xml_support

Definition at line 31 of file xml_utils.cpp.
