#include <errno.h>
#include "evsel.h"
#include "machine.h"
#include "thread.h"
#include "comm.h"
#include "symbol.h"
#include "event.h"
#include "util.h"
#include "thread-stack.h"
#include "callchain.h"
#include "call-path.h"
#include "db-export.h"

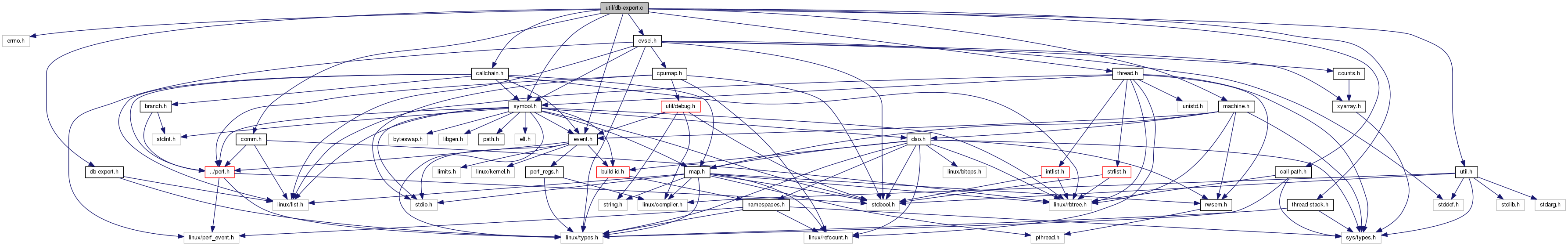

Include dependency graph for db-export.c:

Classes
struct	deferred_export

Functions
static int	db_export__deferred (struct db_export *dbe)

static void	db_export__free_deferred (struct db_export *dbe)

static int	db_export__defer_comm (struct db_export dbe, struct comm comm)

int	db_export__init (struct db_export *dbe)

int	db_export__flush (struct db_export *dbe)

void	db_export__exit (struct db_export *dbe)

int	db_export__evsel (struct db_export dbe, struct perf_evsel evsel)

int	db_export__machine (struct db_export dbe, struct machine machine)

int	db_export__thread (struct db_export dbe, struct thread thread, struct machine machine, struct comm comm)

int	db_export__comm (struct db_export dbe, struct comm comm, struct thread *main_thread)

int	db_export__comm_thread (struct db_export dbe, struct comm comm, struct thread *thread)

int	db_export__dso (struct db_export dbe, struct dso dso, struct machine *machine)

int	db_export__symbol (struct db_export dbe, struct symbol sym, struct dso *dso)

static int	db_ids_from_al (struct db_export dbe, struct addr_location al, u64 dso_db_id, u64 sym_db_id, u64 *offset)

static struct call_path *	call_path_from_sample (struct db_export dbe, struct machine machine, struct thread thread, struct perf_sample sample, struct perf_evsel *evsel)

int	db_export__branch_type (struct db_export dbe, u32 branch_type, const char name)

int	db_export__sample (struct db_export dbe, union perf_event event, struct perf_sample sample, struct perf_evsel evsel, struct addr_location *al)

int	db_export__branch_types (struct db_export *dbe)

int	db_export__call_path (struct db_export dbe, struct call_path cp)

int	db_export__call_return (struct db_export dbe, struct call_return cr)

Variables
struct {
u32 branch_type

const char * name

}	branch_types []

Function Documentation

◆ call_path_from_sample()

static struct call_path* call_path_from_sample	(	struct db_export *	dbe,
		struct machine *	machine,
		struct thread *	thread,
		struct perf_sample *	sample,
		struct perf_evsel *	evsel
	)

static

Definition at line 269 of file db-export.c.

Here is the call graph for this function:

◆ db_export__branch_type()

int db_export__branch_type	(	struct db_export *	dbe,
		u32	branch_type,
		const char *	name
	)

Definition at line 341 of file db-export.c.

◆ db_export__branch_types()

int db_export__branch_types ( struct db_export * dbe )

Definition at line 456 of file db-export.c.

Here is the call graph for this function:

◆ db_export__call_path()

int db_export__call_path	(	struct db_export *	dbe,
		struct call_path *	cp
	)

Definition at line 469 of file db-export.c.

Here is the call graph for this function:

◆ db_export__call_return()

int db_export__call_return	(	struct db_export *	dbe,
		struct call_return *	cr
	)

Definition at line 490 of file db-export.c.

Here is the call graph for this function:

◆ db_export__comm()

int db_export__comm	(	struct db_export *	dbe,
		struct comm *	comm,
		struct thread *	main_thread
	)

Definition at line 171 of file db-export.c.

Here is the call graph for this function:

◆ db_export__comm_thread()

int db_export__comm_thread	(	struct db_export *	dbe,
		struct comm *	comm,
		struct thread *	thread
	)

Definition at line 193 of file db-export.c.

◆ db_export__defer_comm()

static int db_export__defer_comm	(	struct db_export *	dbe,
		struct comm *	comm
	)

static

Definition at line 65 of file db-export.c.

Here is the call graph for this function:

◆ db_export__deferred()

static int db_export__deferred ( struct db_export * dbe )

static

Definition at line 35 of file db-export.c.

Here is the call graph for this function:

◆ db_export__dso()

int db_export__dso	(	struct db_export *	dbe,
		struct dso *	dso,
		struct machine *	machine
	)

Definition at line 206 of file db-export.c.

◆ db_export__evsel()

int db_export__evsel	(	struct db_export *	dbe,
		struct perf_evsel *	evsel
	)

Definition at line 98 of file db-export.c.

◆ db_export__exit()

void db_export__exit ( struct db_export * dbe )

Definition at line 91 of file db-export.c.

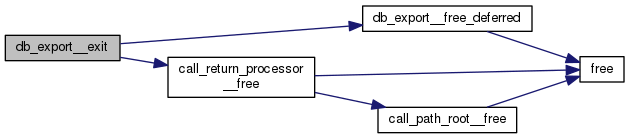

Here is the call graph for this function:

◆ db_export__flush()

int db_export__flush ( struct db_export * dbe )

Definition at line 86 of file db-export.c.

Here is the call graph for this function:

◆ db_export__free_deferred()

static void db_export__free_deferred ( struct db_export * dbe )

static

Definition at line 53 of file db-export.c.

Here is the call graph for this function:

◆ db_export__init()

int db_export__init ( struct db_export * dbe )

Definition at line 79 of file db-export.c.

Here is the call graph for this function:

◆ db_export__machine()

int db_export__machine	(	struct db_export *	dbe,
		struct machine *	machine
	)

Definition at line 111 of file db-export.c.

◆ db_export__sample()

int db_export__sample	(	struct db_export *	dbe,
		union perf_event *	event,
		struct perf_sample *	sample,
		struct perf_evsel *	evsel,
		struct addr_location *	al
	)

Definition at line 350 of file db-export.c.

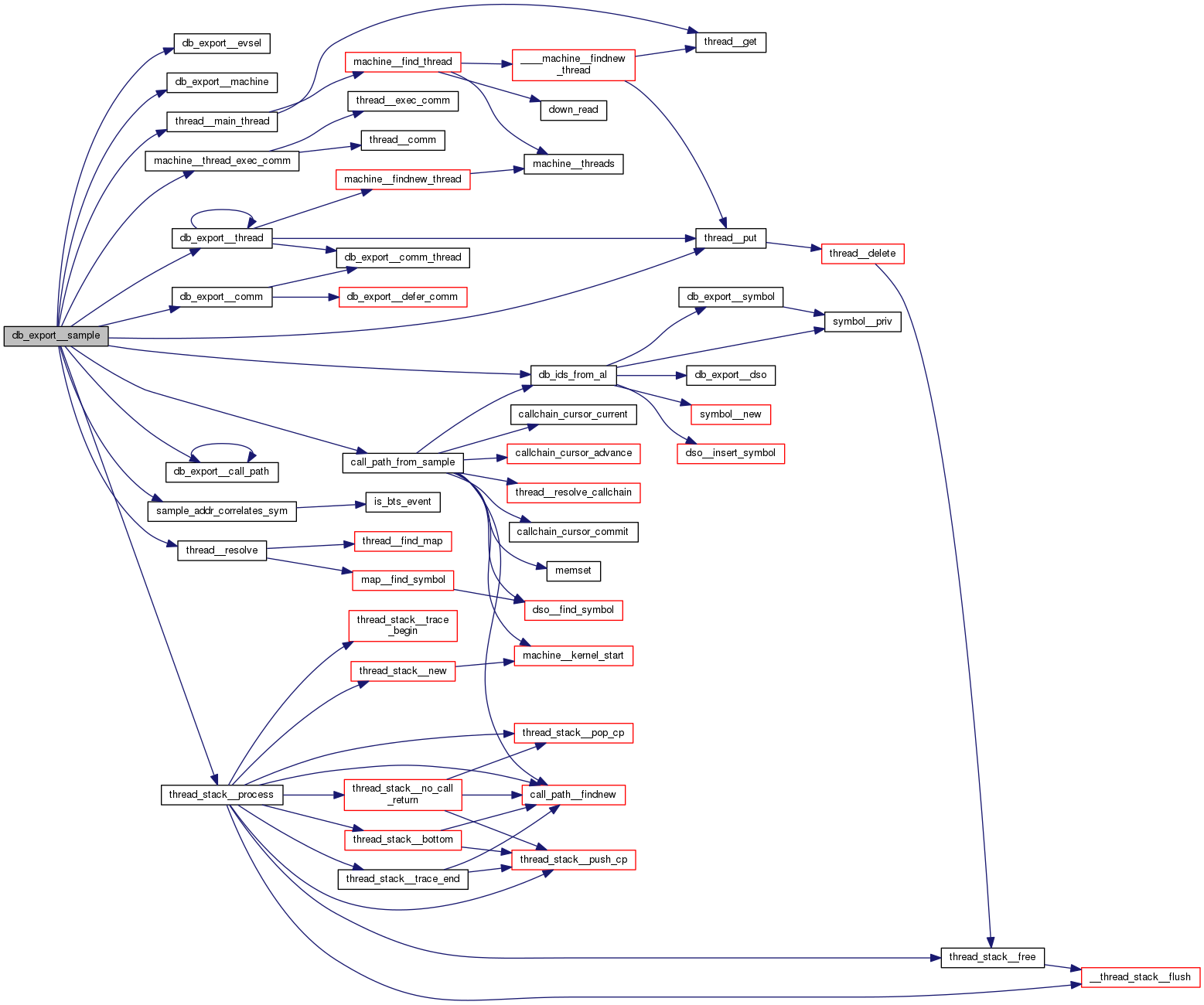

Here is the call graph for this function:

◆ db_export__symbol()

int db_export__symbol	(	struct db_export *	dbe,
		struct symbol *	sym,
		struct dso *	dso
	)

Definition at line 220 of file db-export.c.

Here is the call graph for this function:

◆ db_export__thread()

int db_export__thread	(	struct db_export *	dbe,
		struct thread *	thread,
		struct machine *	machine,
		struct comm *	comm
	)

Definition at line 124 of file db-export.c.

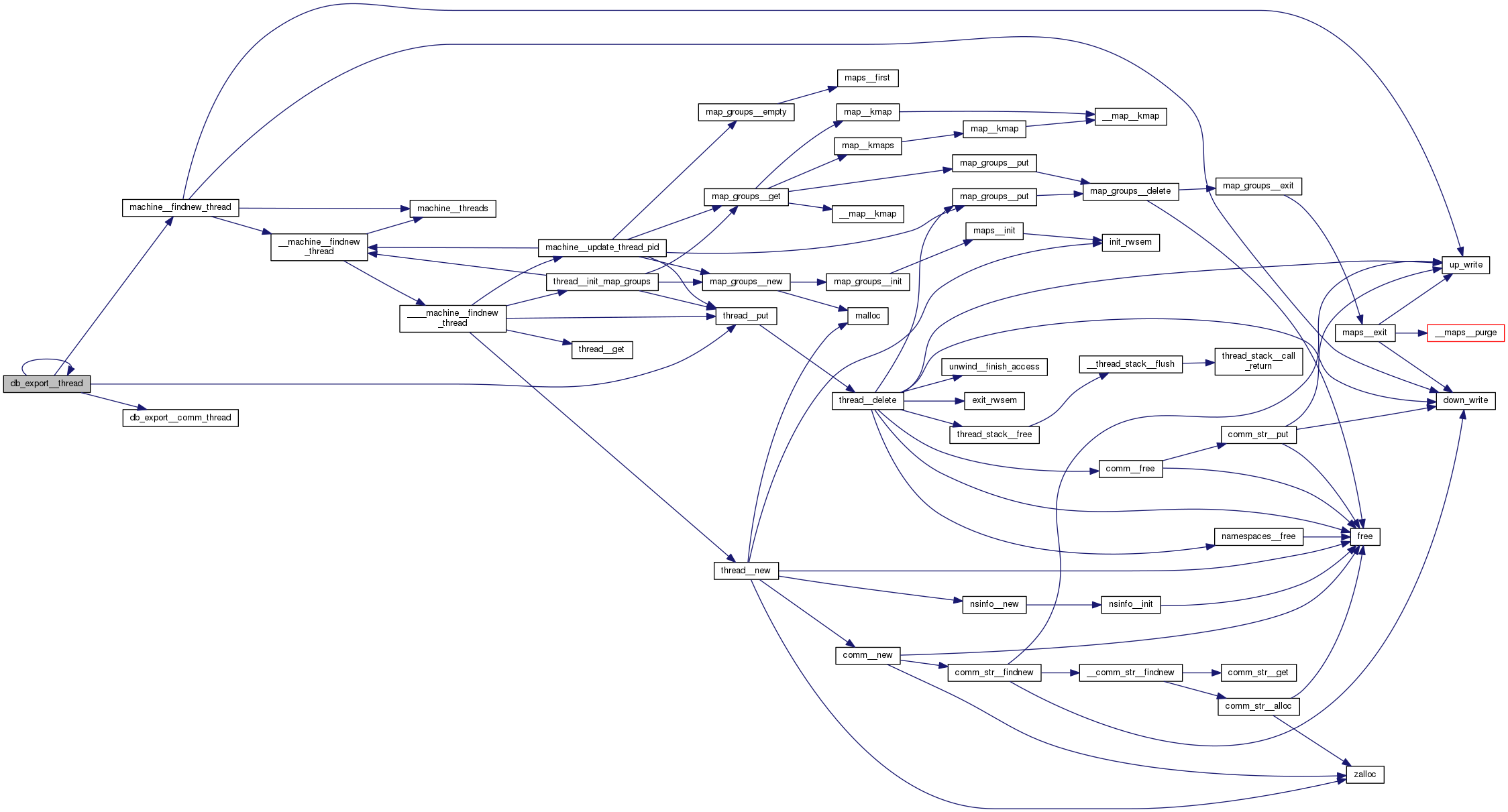

Here is the call graph for this function:

◆ db_ids_from_al()

static int db_ids_from_al	(	struct db_export *	dbe,
		struct addr_location *	al,
		u64 *	dso_db_id,
		u64 *	sym_db_id,
		u64 *	offset
	)

static

Definition at line 236 of file db-export.c.

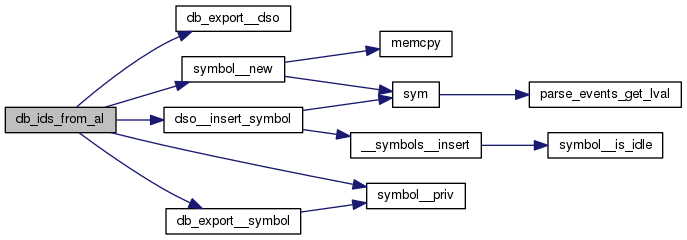

Here is the call graph for this function:

Variable Documentation

◆ branch_type

u32 branch_type

Definition at line 431 of file db-export.c.

◆ branch_types

struct { ... } branch_types[]

Initial value:

= {
    {0, "no branch"},
    {PERF_IP_FLAG_BRANCH | PERF_IP_FLAG_CALL, "call"},
    {PERF_IP_FLAG_BRANCH | PERF_IP_FLAG_RETURN, "return"},
    {PERF_IP_FLAG_BRANCH | PERF_IP_FLAG_CONDITIONAL, "conditional jump"},
    {PERF_IP_FLAG_BRANCH, "unconditional jump"},
    {PERF_IP_FLAG_BRANCH | PERF_IP_FLAG_CALL | PERF_IP_FLAG_INTERRUPT,
     "software interrupt"},
    {PERF_IP_FLAG_BRANCH | PERF_IP_FLAG_RETURN | PERF_IP_FLAG_INTERRUPT,
     "return from interrupt"},
    {PERF_IP_FLAG_BRANCH | PERF_IP_FLAG_CALL | PERF_IP_FLAG_SYSCALLRET,
     "system call"},
    {PERF_IP_FLAG_BRANCH | PERF_IP_FLAG_RETURN | PERF_IP_FLAG_SYSCALLRET,
     "return from system call"},
    {PERF_IP_FLAG_BRANCH | PERF_IP_FLAG_ASYNC, "asynchronous branch"},
    {PERF_IP_FLAG_BRANCH | PERF_IP_FLAG_CALL | PERF_IP_FLAG_ASYNC |
     PERF_IP_FLAG_INTERRUPT, "hardware interrupt"},
    {PERF_IP_FLAG_BRANCH | PERF_IP_FLAG_TX_ABORT, "transaction abort"},
    {PERF_IP_FLAG_BRANCH | PERF_IP_FLAG_TRACE_BEGIN, "trace begin"},
    {PERF_IP_FLAG_BRANCH | PERF_IP_FLAG_TRACE_END, "trace end"},
    {0, NULL}
}

◆ name

const char* name

Definition at line 432 of file db-export.c.
