svghelper.h File Reference

#include <linux/types.h>

Include dependency graph for svghelper.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	open_svg (const char *filename, int cpus, int rows, u64 start, u64 end)
void	svg_ubox (int Yslot, u64 start, u64 end, double height, const char *type, int fd, int err, int merges)
void	svg_lbox (int Yslot, u64 start, u64 end, double height, const char *type, int fd, int err, int merges)
void	svg_fbox (int Yslot, u64 start, u64 end, double height, const char *type, int fd, int err, int merges)
void	svg_box (int Yslot, u64 start, u64 end, const char *type)
void	svg_blocked (int Yslot, int cpu, u64 start, u64 end, const char *backtrace)
void	svg_running (int Yslot, int cpu, u64 start, u64 end, const char *backtrace)
void	svg_waiting (int Yslot, int cpu, u64 start, u64 end, const char *backtrace)
void	svg_cpu_box (int cpu, u64 max_frequency, u64 turbo_frequency)
void	svg_process (int cpu, u64 start, u64 end, int pid, const char *name, const char *backtrace)
void	svg_cstate (int cpu, u64 start, u64 end, int type)
void	svg_pstate (int cpu, u64 start, u64 end, u64 freq)
void	svg_time_grid (double min_thickness)
void	svg_io_legenda (void)
void	svg_legenda (void)
void	svg_wakeline (u64 start, int row1, int row2, const char *backtrace)
void	svg_partial_wakeline (u64 start, int row1, char *desc1, int row2, char *desc2, const char *backtrace)
void	svg_interrupt (u64 start, int row, const char *backtrace)
void	svg_text (int Yslot, u64 start, const char *text)
void	svg_close (void)
int	svg_build_topology_map (char *sib_core, int sib_core_nr, char *sib_thr, int sib_thr_nr)

Variables
int	svg_page_width
u64	svg_highlight
const char *	svg_highlight_name

Function Documentation

open_svg()

void open_svg	(	const char *	filename,
		int	cpus,
		int	rows,
		u64	start,
		u64	end
	)

Definition at line 87 of file svghelper.c.

Here is the call graph for this function:

svg_blocked()

void svg_blocked	(	int	Yslot,
		int	cpu,
		u64	start,
		u64	end,
		const char *	backtrace
	)

Definition at line 222 of file svghelper.c.

Here is the call graph for this function:

svg_box()

void svg_box	(	int	Yslot,
		u64	start,
		u64	end,
		const char *	type
	)

Definition at line 212 of file svghelper.c.

Here is the call graph for this function:

svg_build_topology_map()

int svg_build_topology_map	(	char *	sib_core,
		int	sib_core_nr,
		char *	sib_thr,
		int	sib_thr_nr
	)

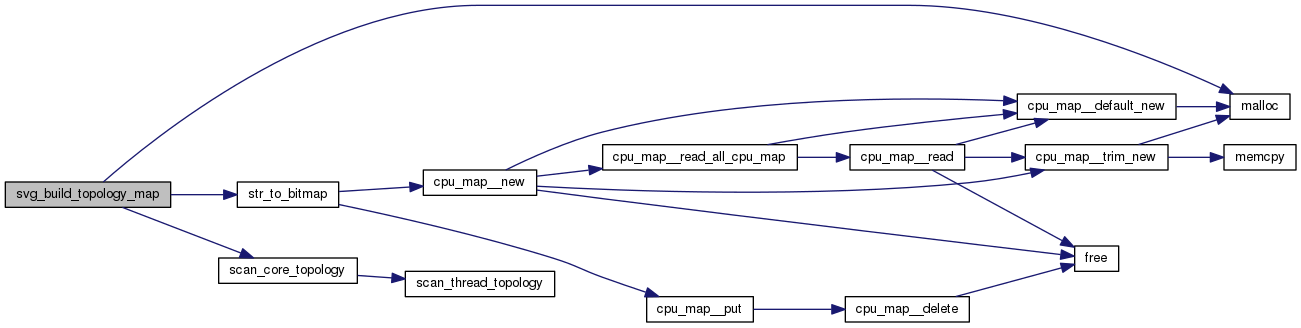

Definition at line 757 of file svghelper.c.

Here is the call graph for this function:

svg_close()

void svg_close

(

void

)

Definition at line 682 of file svghelper.c.

svg_cpu_box()

void svg_cpu_box	(	int	cpu,
		u64	max_frequency,
		u64	turbo_frequency
	)

Definition at line 358 of file svghelper.c.

Here is the call graph for this function:

svg_cstate()

void svg_cstate	(	int	cpu,
		u64	start,
		u64	end,
		int	type
	)

Definition at line 418 of file svghelper.c.

Here is the call graph for this function:

svg_fbox()

void svg_fbox	(	int	Yslot,
		u64	start,
		u64	end,
		double	height,
		const char *	type,
		int	fd,
		int	err,
		int	merges
	)

Definition at line 193 of file svghelper.c.

Here is the call graph for this function:

svg_interrupt()

void svg_interrupt	(	u64	start,
		int	row,
		const char *	backtrace
	)

Definition at line 583 of file svghelper.c.

Here is the call graph for this function:

svg_io_legenda()

void svg_io_legenda

(

void

)

Definition at line 623 of file svghelper.c.

Here is the call graph for this function:

svg_lbox()

void svg_lbox	(	int	Yslot,
		u64	start,
		u64	end,
		double	height,
		const char *	type,
		int	fd,
		int	err,
		int	merges
	)

Definition at line 174 of file svghelper.c.

Here is the call graph for this function:

svg_legenda()

void svg_legenda

(

void

)

Definition at line 637 of file svghelper.c.

Here is the call graph for this function:

svg_partial_wakeline()

void svg_partial_wakeline	(	u64	start,
		int	row1,
		char *	desc1,
		int	row2,
		char *	desc2,
		const char *	backtrace
	)

Definition at line 496 of file svghelper.c.

Here is the call graph for this function:

svg_process()

void svg_process	(	int	cpu,
		u64	start,
		u64	end,
		int	pid,
		const char *	name,
		const char *	backtrace
	)

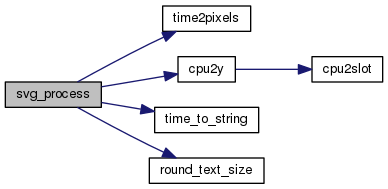

Definition at line 384 of file svghelper.c.

Here is the call graph for this function:

svg_pstate()

void svg_pstate	(	int	cpu,
		u64	start,
		u64	end,
		u64	freq
	)

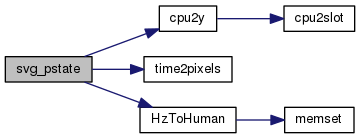

Definition at line 475 of file svghelper.c.

Here is the call graph for this function:

svg_running()

void svg_running	(	int	Yslot,
		int	cpu,
		u64	start,
		u64	end,
		const char *	backtrace
	)

Definition at line 236 of file svghelper.c.

Here is the call graph for this function:

svg_text()

void svg_text	(	int	Yslot,
		u64	start,
		const char *	text
	)

Definition at line 603 of file svghelper.c.

Here is the call graph for this function:

svg_time_grid()

void svg_time_grid

(

double

min_thickness

)

Definition at line 653 of file svghelper.c.

Here is the call graph for this function:

svg_ubox()

void svg_ubox	(	int	Yslot,
		u64	start,
		u64	end,
		double	height,
		const char *	type,
		int	fd,
		int	err,
		int	merges
	)

Definition at line 155 of file svghelper.c.

Here is the call graph for this function:

svg_waiting()

void svg_waiting	(	int	Yslot,
		int	cpu,
		u64	start,
		u64	end,
		const char *	backtrace
	)

Definition at line 290 of file svghelper.c.

Here is the call graph for this function:

svg_wakeline()

void svg_wakeline	(	u64	start,
		int	row1,
		int	row2,
		const char *	backtrace
	)

Definition at line 554 of file svghelper.c.

Here is the call graph for this function:

Variable Documentation

svg_highlight

u64 svg_highlight

Definition at line 37 of file svghelper.c.

svg_highlight_name

const char* svg_highlight_name

Definition at line 38 of file svghelper.c.

svg_page_width

int svg_page_width

Definition at line 36 of file svghelper.c.
