org.swtchart.internal.series.LineSeries Class Reference

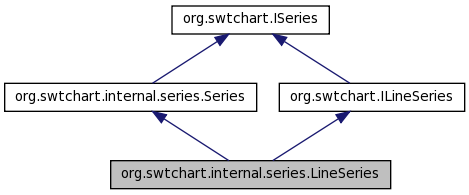

Inheritance diagram for org.swtchart.internal.series.LineSeries:

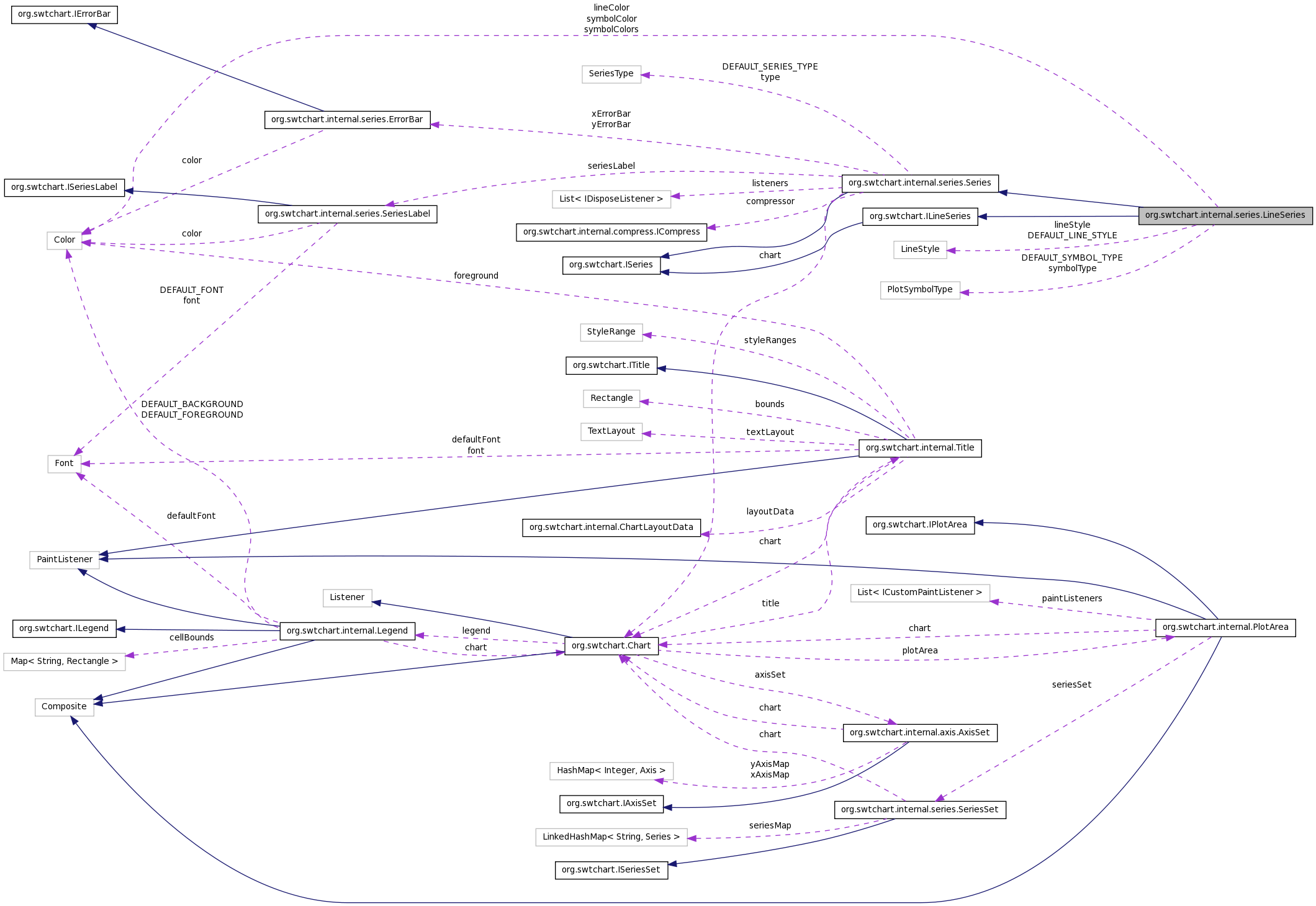

Collaboration diagram for org.swtchart.internal.series.LineSeries:

Public Member Functions
LineStyle	getLineStyle ()
	Gets line style.
void	setLineStyle (LineStyle style)
Color	getLineColor ()
	Gets the line color.
void	setLineColor (Color color)
	Sets line color.
int	getLineWidth ()
	Gets the line width.
void	setLineWidth (int width)
	Sets the width of line connecting data points and also line drawing symbol if applicable (i.e.
PlotSymbolType	getSymbolType ()
	Gets the symbol type.
void	setSymbolType (PlotSymbolType type)
int	getSymbolSize ()
	Gets the symbol size in pixels.
void	setSymbolSize (int size)
	Sets the symbol size in pixels.
Color	getSymbolColor ()
	Gets the symbol color.
void	setSymbolColor (Color color)
	Sets the symbol color.
Color[]	getSymbolColors ()
	Gets the symbol colors.
void	setSymbolColors (Color[] colors)
	Sets the symbol colors.
void	enableArea (boolean enabled)
	Enables the area chart.
boolean	isAreaEnabled ()
	Gets the state indicating if area chart is enabled.
void	enableStep (boolean enabled)
	Enables the step chart.
boolean	isStepEnabled ()
	Gets the state indicating if step chart is enabled.
Range	getAdjustedRange (Axis axis, int length)
	Gets the adjusted range to show all series in screen.
int	getAntialias ()
	Gets the anti-aliasing value for drawing line.
void	setAntialias (int antialias)
	Sets the anti-aliasing value for drawing line.
void	drawSeriesSymbol (GC gc, int h, int v, Color color)
	Draws series symbol.
Protected Member Functions
	LineSeries (Chart chart, String id)
	Constructor.
void	setCompressor ()
	Sets the compressor.
void	draw (GC gc, int width, int height, Axis xAxis, Axis yAxis)
	Draws series.
Private Member Functions
int[]	getLinePoints (double[] xseries, double[] yseries, int[] indexes, int index, Axis xAxis, Axis yAxis)
	Gets the line points to draw line and area.
void	drawLineAndArea (GC gc, int width, int height, Axis xAxis, Axis yAxis)
	Draws the line and area.
void	drawArea (GC gc, int[] p, boolean isHorizontal)
	Draws the area.
void	drawSymbolAndLabel (GC gc, int width, int height, Axis xAxis, Axis yAxis)
	Draws series symbol, label and error bars.
Static Private Member Functions
static void	drawLine (GC gc, Axis xAxis, Axis yAxis, double[] xseries, double[] yseries, boolean isHorizontal)
static void	drawLineWithStyle (GC gc, Axis xAxis, Axis yAxis, double[] xseries, double[] yseries, boolean isHorizontal)
	Draws the line segments with line style.
static void	addPoint (List< Integer > pointList, int x, int y, boolean isHorizontal)
Private Attributes
int	symbolSize
	the symbol size in pixel
Color	symbolColor
	the symbol color
Color[]	symbolColors
	the symbol colors
PlotSymbolType	symbolType
	the symbol type
LineStyle	lineStyle
	the line style
Color	lineColor
	the line color
int	lineWidth
	the line width
boolean	areaEnabled
	the state indicating if area chart is enabled
boolean	stepEnabled
	the state indicating if step chart is enabled
int	antialias
	the anti-aliasing value for drawing line
Static Private Attributes
static final int	ALPHA = 50
	the alpha value to draw area
static final LineStyle	DEFAULT_LINE_STYLE = LineStyle.SOLID
	the default line style
static final int	DEFAULT_LINE_WIDTH = 1
	the default line width
static final int	DEFAULT_LINE_COLOR = SWT.COLOR_BLUE
	the default line color
static final int	DEFAULT_SYMBOL_COLOR = SWT.COLOR_DARK_GRAY
	the default symbol color
static final int	DEFAULT_SIZE = 4
	the default symbol size
static final PlotSymbolType	DEFAULT_SYMBOL_TYPE = PlotSymbolType.CIRCLE
	the default symbol type
static final int	DEFAULT_ANTIALIAS = SWT.DEFAULT
	the default anti-aliasing value
static final int	MARGIN_AT_MIN_MAX_PLOT = 6
	the margin in pixels attached at the minimum/maximum plot

Detailed Description

Line series.

Definition at line 29 of file LineSeries.java.

Constructor & Destructor Documentation

org.swtchart.internal.series.LineSeries.LineSeries	(	Chart	chart,
		String	id
	)			`[protected]`

Constructor.

Parameters:

	chart	the chart
	id	the series id

Definition at line 96 of file LineSeries.java.

Member Function Documentation

static void org.swtchart.internal.series.LineSeries.addPoint	(	List< Integer >	pointList,
		int	x,
		int	y,
		boolean	isHorizontal
	)			`[static, private]`

Definition at line 656 of file LineSeries.java.

Referenced by org.swtchart.internal.series.LineSeries.drawLineWithStyle().

Here is the caller graph for this function:

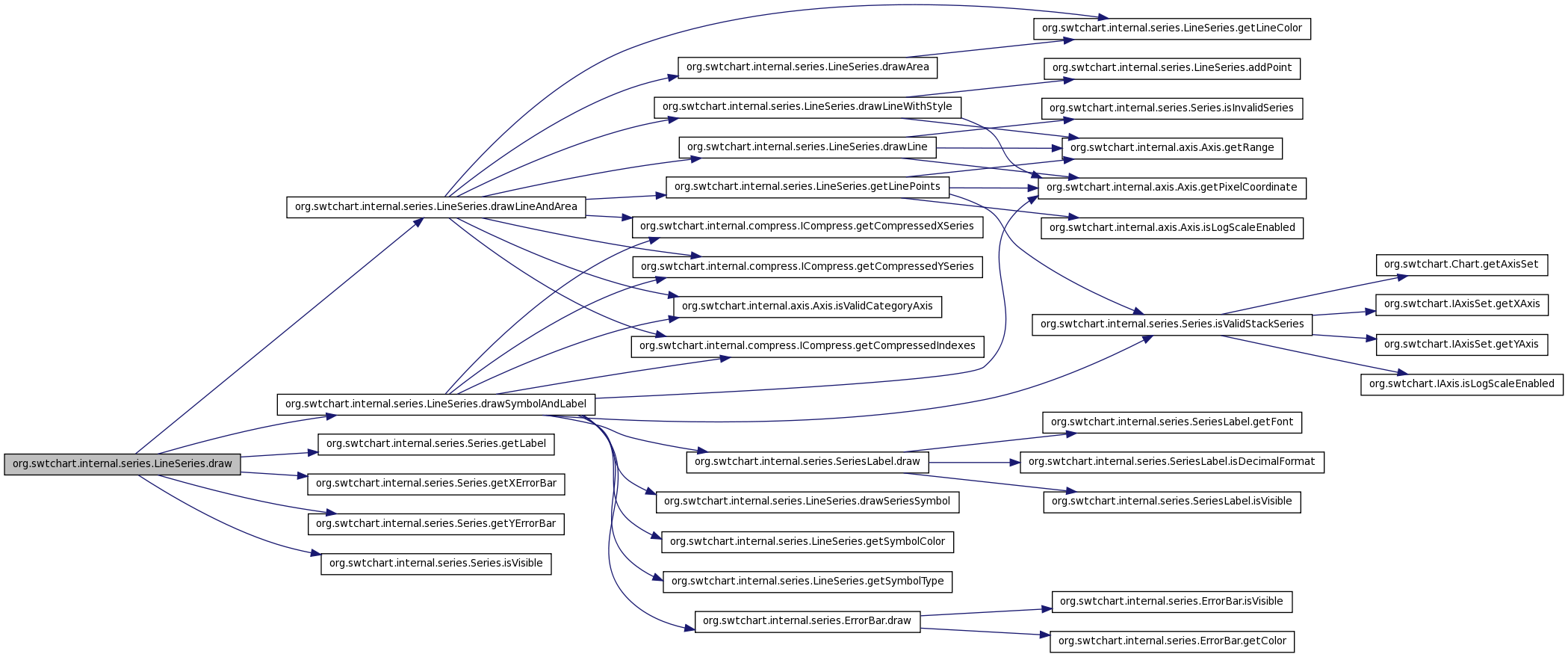

void org.swtchart.internal.series.LineSeries.draw	(	GC	gc,
		int	width,
		int	height,
		Axis	xAxis,
		Axis	yAxis
	)			`[protected, virtual]`

Draws series.

Parameters:

	gc	the graphics context
	width	the width to draw series
	height	the height to draw series
	xAxis	the x axis
	yAxis	the y axis

Implements org.swtchart.internal.series.Series.

Definition at line 411 of file LineSeries.java.

Here is the call graph for this function:

void org.swtchart.internal.series.LineSeries.drawArea	(	GC	gc,
		int[]	p,
		boolean	isHorizontal
	)			`[private]`

Draws the area.

Parameters:

	gc	the graphic context
	p	the line points
	isHorizontal	true if orientation is horizontal

Definition at line 677 of file LineSeries.java.

References org.swtchart.internal.series.LineSeries.ALPHA, org.swtchart.internal.series.LineSeries.getLineColor(), and org.swtchart.internal.series.LineSeries.stepEnabled.

Referenced by org.swtchart.internal.series.LineSeries.drawLineAndArea().

Here is the call graph for this function:

Here is the caller graph for this function:

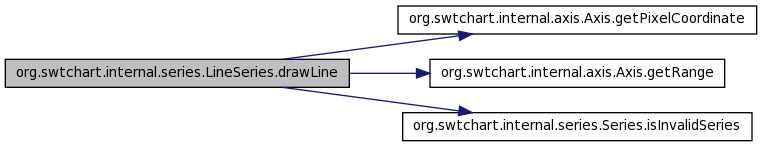

static void org.swtchart.internal.series.LineSeries.drawLine	(	GC	gc,
		Axis	xAxis,
		Axis	yAxis,
		double[]	xseries,
		double[]	yseries,
		boolean	isHorizontal
	)			`[static, private]`

Definition at line 510 of file LineSeries.java.

References org.swtchart.internal.axis.Axis.getPixelCoordinate(), org.swtchart.internal.axis.Axis.getRange(), org.swtchart.internal.series.Series.isInvalidSeries(), org.swtchart.Range.lower, and org.swtchart.Range.upper.

Referenced by org.swtchart.internal.series.LineSeries.drawLineAndArea().

Here is the call graph for this function:

Here is the caller graph for this function:

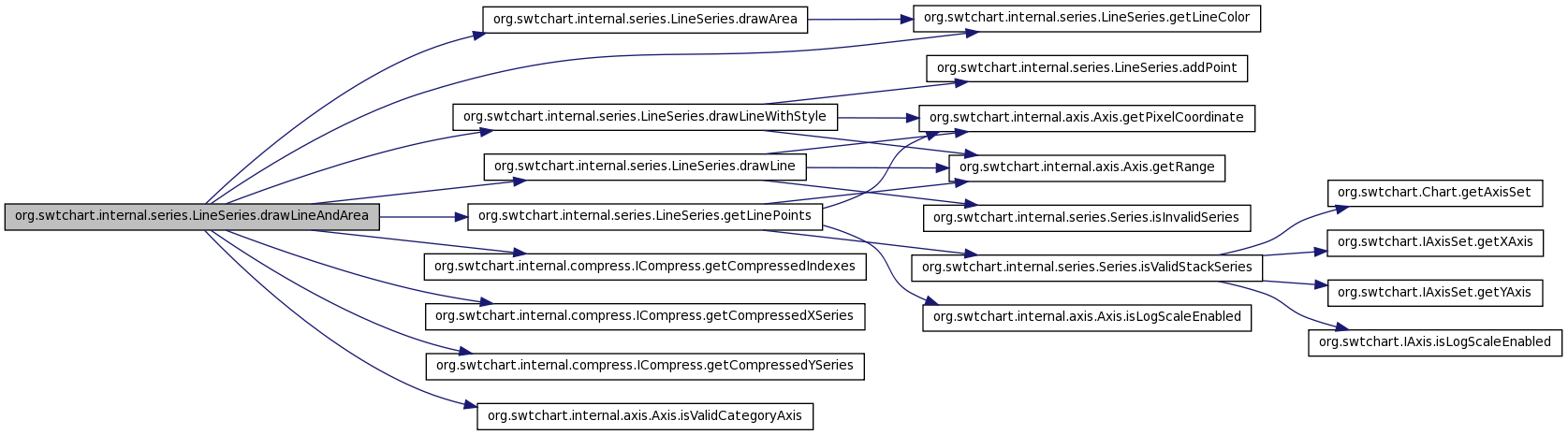

void org.swtchart.internal.series.LineSeries.drawLineAndArea	(	GC	gc,
		int	width,
		int	height,
		Axis	xAxis,
		Axis	yAxis
	)			`[private]`

Draws the line and area.

Parameters:

	gc	the graphics context
	width	the width to draw series
	height	the height to draw series
	xAxis	the x axis
	yAxis	the y axis

Definition at line 444 of file LineSeries.java.

Referenced by org.swtchart.internal.series.LineSeries.draw().

Here is the call graph for this function:

Here is the caller graph for this function:

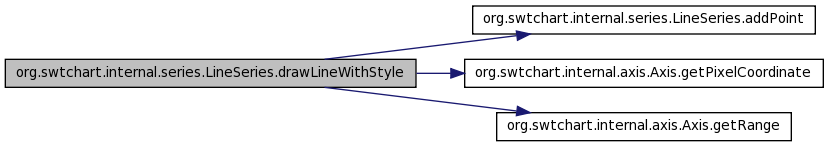

static void org.swtchart.internal.series.LineSeries.drawLineWithStyle	(	GC	gc,
		Axis	xAxis,
		Axis	yAxis,
		double[]	xseries,
		double[]	yseries,
		boolean	isHorizontal
	)			`[static, private]`

Draws the line segments with line style.

When there are multiple data points at the same x pixel coordinate, it is inefficient to simply draw vertical lines connecting them by overlaying. Instead, only a single vertical line representing the overlaid multiple vertical lines is drawn at that x pixel coordinate.

That's why vertical line is handled differently from non-vertical line in this method.

Parameters:

	gc	the graphic context
	xAxis	the x axis
	yAxis	the y axis
	xseries	the x series
	yseries	the y series
	isHorizontal	true if orientation is horizontal

Definition at line 593 of file LineSeries.java.

References org.swtchart.internal.series.LineSeries.addPoint(), org.swtchart.internal.axis.Axis.getPixelCoordinate(), org.swtchart.internal.axis.Axis.getRange(), org.swtchart.Range.lower, and org.swtchart.Range.upper.

Referenced by org.swtchart.internal.series.LineSeries.drawLineAndArea().

Here is the call graph for this function:

Here is the caller graph for this function:

void org.swtchart.internal.series.LineSeries.drawSeriesSymbol	(	GC	gc,
		int	h,
		int	v,
		Color	color
	)

Draws series symbol.

Parameters:

	gc	the GC object
	h	the horizontal coordinate to draw symbol
	v	the vertical coordinate to draw symbol
	color	the symbol color

Definition at line 774 of file LineSeries.java.

References org.swtchart.internal.series.LineSeries.symbolSize, and org.swtchart.internal.series.LineSeries.symbolType.

Referenced by org.swtchart.internal.series.LineSeries.drawSymbolAndLabel().

Here is the caller graph for this function:

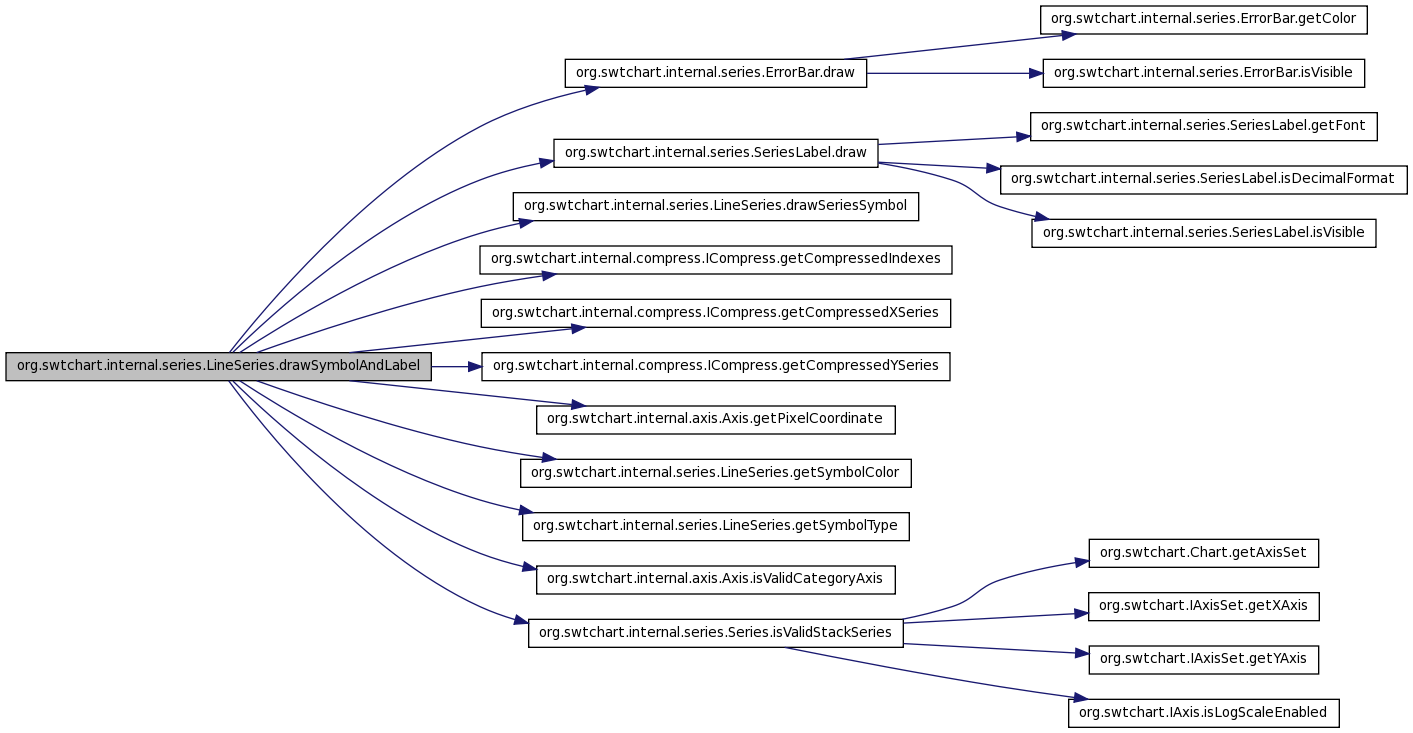

void org.swtchart.internal.series.LineSeries.drawSymbolAndLabel	(	GC	gc,
		int	width,
		int	height,
		Axis	xAxis,
		Axis	yAxis
	)			`[private]`

Draws series symbol, label and error bars.

Parameters:

	gc	the graphics context
	width	the width to draw series
	height	the height to draw series
	xAxis	the x axis
	yAxis	the y axis

Definition at line 717 of file LineSeries.java.

Referenced by org.swtchart.internal.series.LineSeries.draw().

Here is the call graph for this function:

Here is the caller graph for this function:

void org.swtchart.internal.series.LineSeries.enableArea ( boolean enabled )

Enables the area chart.

Parameters:

enabled

true if enabling area chart

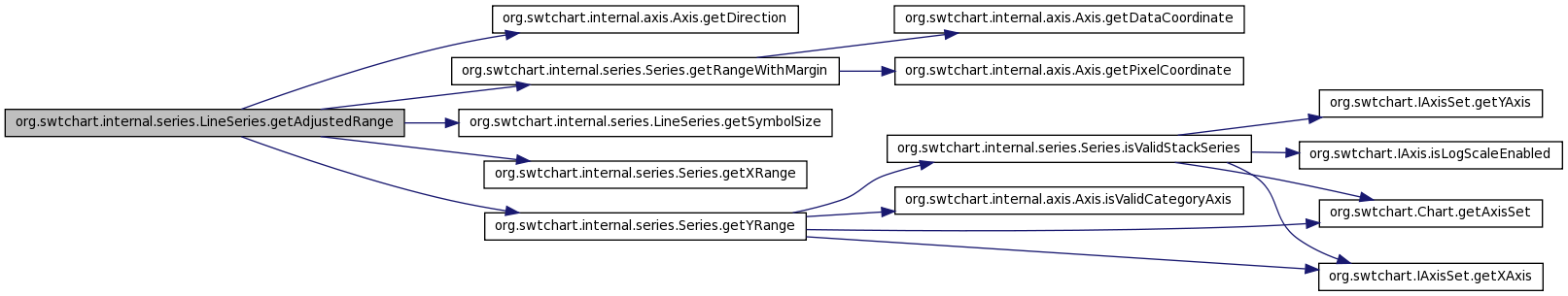

Range org.swtchart.internal.series.LineSeries.getAdjustedRange	(	Axis	axis,
		int	length
	)			`[virtual]`

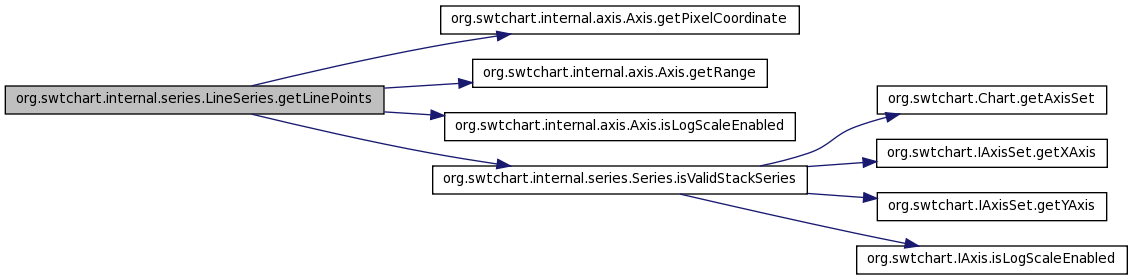

int [] org.swtchart.internal.series.LineSeries.getLinePoints	(	double[]	xseries,
		double[]	yseries,
		int[]	indexes,
		int	index,
		Axis	xAxis,
		Axis	yAxis
	)			`[private]`

	xseries	the horizontal series
	yseries	the vertical series
	indexes	the series indexes
	index	the index of series
	xAxis	the X axis
	yAxis	the Y axis
