org.swtchart.internal.series.BarSeries Class Reference

Bar series. More...

Inheritance diagram for org.swtchart.internal.series.BarSeries:

[legend]

Collaboration diagram for org.swtchart.internal.series.BarSeries:

[legend]

List of all members.

Public Member Functions
BarWidthStyle	getBarWidthStyle (BarWidthStyle style)
void	setBarWidthStyle (BarWidthStyle style)
int	getBarWidth ()
	Gets the bar width in pixels.
void	setBarWidth (int width)
	Sets the bar width in pixels.
int	getBarPadding ()
	Gets the bar padding in percentage.
void	setBarPadding (int padding)
	Sets the bar padding in percentage.
Color	getBarColor ()
	Gets the bar color.
void	setBarColor (Color color)
	Sets the bar color.
Rectangle[]	getBounds ()
	Gets the array of bar rectangles.
Range	getAdjustedRange (Axis axis, int length)
	Gets the adjusted range to show all series in screen.
Static Public Attributes
static final int	INITIAL_BAR_WIDTH = 20
	the initial bar width in pixels
static final int	INITIAL_PADDING = 20
	the initial bar padding in percentage
Protected Member Functions
	BarSeries (Chart chart, String id)
	Constructor.
void	setRiserIndex (int riserIndex)
	Sets the index of riser in a category.
void	setCompressor ()
	Sets the compressor.
void	draw (GC gc, int width, int height, Axis xAxis, Axis yAxis)
	Draws series.
Private Member Functions
Rectangle[]	getBoundsForCompressedSeries ()
	Gets the array of bar rectangles for compressed series.
Rectangle	getVisibleRectangle (int x, int y, int width, int height)
	Gets the rectangle that is visible part of given rectangle.
int	getRiserWidth (double[] series, int index, Axis xAxis, double min, double max)
	Gets the riser width.
void	drawRiser (GC gc, int h, int v, int width, int height)
	Draws riser.
Static Private Member Functions
static Color	getFrameColor (Color color)
	Gets the color for riser frame.
Private Attributes
int	riserIndex
	the riser index in a category
Color	barColor
	the riser color
int	barWidth
	the bar width
int	padding
	the padding
BarWidthStyle	barWidthStyle
	the bar width style
Static Private Attributes
static final int	ALPHA = 0xD0
	the alpha value
static final int	MARGIN_AT_MIN_MAX_PLOT = 6
	the margin in pixels attached at the minimum/maximum plot
static final int	DEFAULT_BAR_COLOR = SWT.COLOR_CYAN
	the default bar color

---

Detailed Description

Bar series.

Definition at line 26 of file BarSeries.java.

---

Constructor & Destructor Documentation

org.swtchart.internal.series.BarSeries.BarSeries	(	Chart	chart,
		String	id
	)			[protected]

Constructor.

Parameters:

	chart	the chart
	id	the series id

Definition at line 66 of file BarSeries.java.

References org.swtchart.internal.series.BarSeries.barColor, org.swtchart.internal.series.BarSeries.barWidth, org.swtchart.internal.series.BarSeries.barWidthStyle, org.swtchart.internal.series.Series.compressor, org.swtchart.internal.series.BarSeries.DEFAULT_BAR_COLOR, org.swtchart.internal.series.BarSeries.INITIAL_PADDING, org.swtchart.internal.series.BarSeries.padding, and org.swtchart.internal.series.Series.type.

---

Member Function Documentation

void org.swtchart.internal.series.BarSeries.draw	(	GC	gc,
		int	width,
		int	height,
		Axis	xAxis,
		Axis	yAxis
	)			[protected, virtual]

Draws series.

Parameters:

	gc	the graphics context
	width	the width to draw series
	height	the height to draw series
	xAxis	the x axis
	yAxis	the y axis

Implements org.swtchart.internal.series.Series.

Definition at line 439 of file BarSeries.java.

References org.swtchart.internal.series.Series.compressor, org.swtchart.internal.series.ErrorBar.draw(), org.swtchart.internal.series.SeriesLabel.draw(), org.swtchart.internal.series.BarSeries.drawRiser(), org.swtchart.internal.series.BarSeries.getBoundsForCompressedSeries(), org.swtchart.internal.compress.ICompress.getCompressedIndexes(), org.swtchart.internal.compress.ICompress.getCompressedYSeries(), org.swtchart.internal.axis.Axis.getPixelCoordinate(), org.swtchart.internal.axis.Axis.isHorizontalAxis, org.swtchart.internal.series.ErrorBar.isVisible, org.swtchart.internal.series.SeriesLabel.isVisible, org.swtchart.internal.series.Series.seriesLabel, org.swtchart.internal.series.Series.xErrorBar, org.swtchart.internal.series.Series.xSeries, org.swtchart.internal.series.Series.yErrorBar, and org.swtchart.internal.series.Series.ySeries.

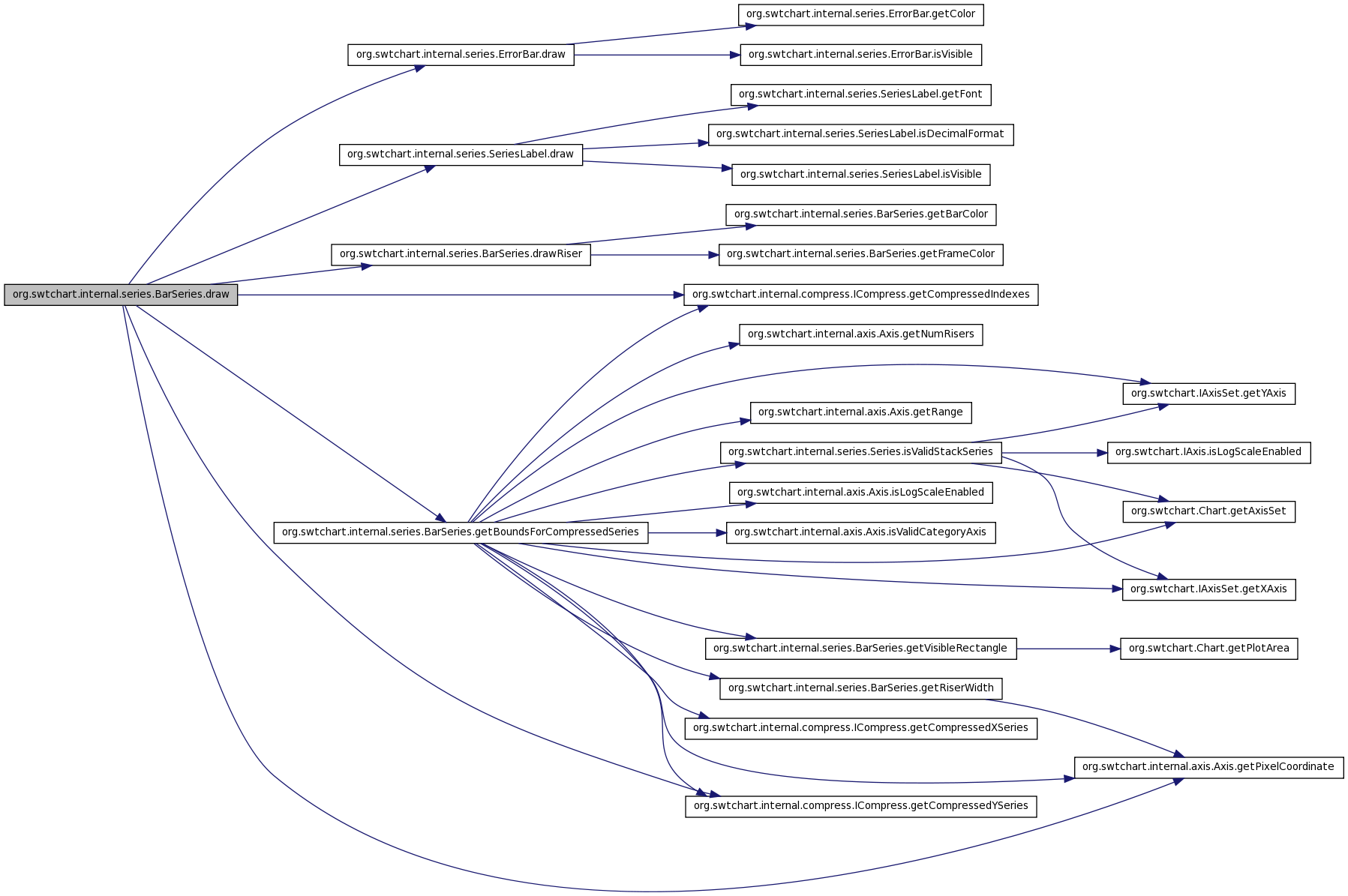

Here is the call graph for this function:

void org.swtchart.internal.series.BarSeries.drawRiser	(	GC	gc,
		int	h,
		int	v,
		int	width,
		int	height
	)			[private]

Draws riser.

Parameters:

	gc	the graphics context
	h	the horizontal coordinate
	v	the vertical coordinate
	width	the riser width
	height	the riser height

Definition at line 485 of file BarSeries.java.

References org.swtchart.internal.series.BarSeries.ALPHA, org.swtchart.internal.series.BarSeries.getBarColor(), and org.swtchart.internal.series.BarSeries.getFrameColor().

Referenced by org.swtchart.internal.series.BarSeries.draw().

Here is the call graph for this function:

Here is the caller graph for this function:

Range org.swtchart.internal.series.BarSeries.getAdjustedRange	(	Axis	axis,
		int	length
	)			[virtual]

Gets the adjusted range to show all series in screen.

This range includes the size of plot like symbol or bar.

Parameters:

	axis	the axis
	length	the axis length in pixels

Returns:

the adjusted range

Implements org.swtchart.internal.series.Series.

Definition at line 330 of file BarSeries.java.

References org.swtchart.internal.axis.Axis.getDirection(), org.swtchart.internal.series.Series.getRangeWithMargin(), org.swtchart.internal.series.BarSeries.getRiserWidth(), org.swtchart.internal.series.Series.getXRange(), org.swtchart.internal.series.Series.getYRange(), org.swtchart.internal.axis.Axis.isLogScaleEnabled(), org.swtchart.Range.lower, org.swtchart.internal.series.BarSeries.MARGIN_AT_MIN_MAX_PLOT, org.swtchart.internal.series.Series.maxX, org.swtchart.internal.series.Series.minX, org.swtchart.internal.series.Series.minY, org.swtchart.Range.upper, and org.swtchart.internal.series.Series.xSeries.

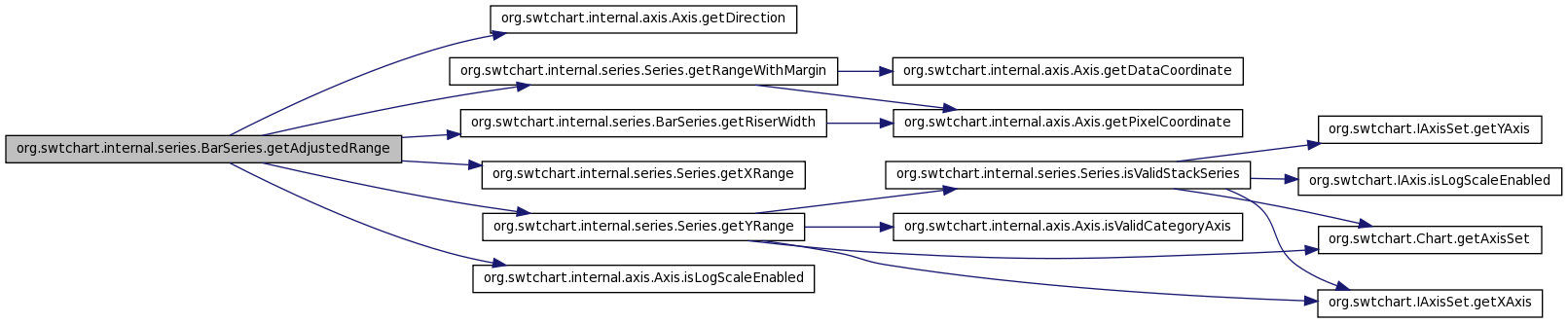

Here is the call graph for this function:

Color org.swtchart.internal.series.BarSeries.getBarColor

(

)

Gets the bar color.

Returns:

the bar color

Implements org.swtchart.IBarSeries.

Definition at line 129 of file BarSeries.java.

References org.swtchart.internal.series.BarSeries.barColor, and org.swtchart.internal.series.BarSeries.DEFAULT_BAR_COLOR.

Referenced by org.swtchart.internal.series.BarSeries.drawRiser().

Here is the caller graph for this function:

int org.swtchart.internal.series.BarSeries.getBarPadding

(

)

Gets the bar padding in percentage.

Returns:

the bar padding in percentage

Implements org.swtchart.IBarSeries.

Definition at line 112 of file BarSeries.java.

References org.swtchart.internal.series.BarSeries.padding.

int org.swtchart.internal.series.BarSeries.getBarWidth

(

)

Gets the bar width in pixels.

Returns:

the bar width in pixels

Implements org.swtchart.IBarSeries.

Definition at line 95 of file BarSeries.java.

References org.swtchart.internal.series.BarSeries.barWidth.

BarWidthStyle org.swtchart.internal.series.BarSeries.getBarWidthStyle

(

BarWidthStyle

style

)

Definition at line 81 of file BarSeries.java.

References org.swtchart.internal.series.BarSeries.barWidthStyle.

Rectangle [] org.swtchart.internal.series.BarSeries.getBounds

(

)

Gets the array of bar rectangles.

This method is typically used for mouse listener to check whether mouse cursor is on bar.

The returned array has the same size as data points. Depending on X axis range, some bars can be out of screen. In this case, the rectangles for invisible bars will be null in the returned array.

Returns:

the array of bar rectangles in pixels.

Implements org.swtchart.IBarSeries.

Definition at line 155 of file BarSeries.java.

References org.swtchart.internal.series.Series.chart, org.swtchart.internal.series.Series.compressor, org.swtchart.Chart.getAxisSet(), org.swtchart.internal.series.BarSeries.getBoundsForCompressedSeries(), org.swtchart.internal.compress.ICompress.getCompressedXSeries(), org.swtchart.IAxisSet.getXAxis(), org.swtchart.internal.series.Series.xAxisId, and org.swtchart.internal.series.Series.xSeries.

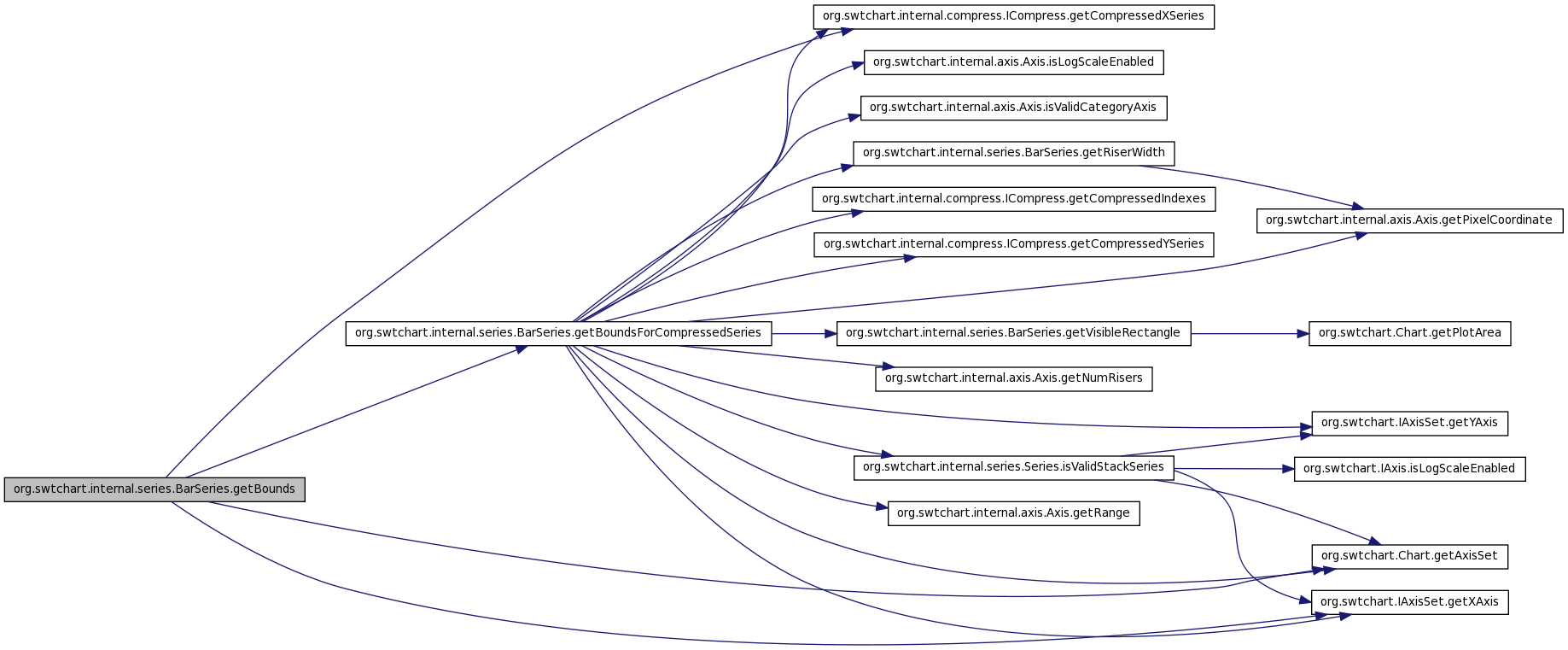

Here is the call graph for this function:

Rectangle [] org.swtchart.internal.series.BarSeries.getBoundsForCompressedSeries

(

)

[private]

Gets the array of bar rectangles for compressed series.

Returns:

the array of bar rectangles for compressed series

Definition at line 180 of file BarSeries.java.

References org.swtchart.internal.series.Series.chart, org.swtchart.internal.series.Series.compressor, org.swtchart.Chart.getAxisSet(), org.swtchart.internal.compress.ICompress.getCompressedIndexes(), org.swtchart.internal.compress.ICompress.getCompressedXSeries(), org.swtchart.internal.compress.ICompress.getCompressedYSeries(), org.swtchart.internal.axis.Axis.getNumRisers(), org.swtchart.internal.axis.Axis.getPixelCoordinate(), org.swtchart.internal.axis.Axis.getRange(), org.swtchart.internal.series.BarSeries.getRiserWidth(), org.swtchart.internal.series.BarSeries.getVisibleRectangle(), org.swtchart.IAxisSet.getXAxis(), org.swtchart.IAxisSet.getYAxis(), org.swtchart.internal.axis.Axis.isHorizontalAxis, org.swtchart.internal.axis.Axis.isLogScaleEnabled(), org.swtchart.internal.axis.Axis.isValidCategoryAxis(), org.swtchart.internal.series.Series.isValidStackSeries(), org.swtchart.Range.lower, org.swtchart.internal.series.BarSeries.riserIndex, org.swtchart.internal.series.Series.stackSeries, org.swtchart.Range.upper, org.swtchart.internal.series.Series.xAxisId, and org.swtchart.internal.series.Series.yAxisId.

Referenced by org.swtchart.internal.series.BarSeries.draw(), and org.swtchart.internal.series.BarSeries.getBounds().

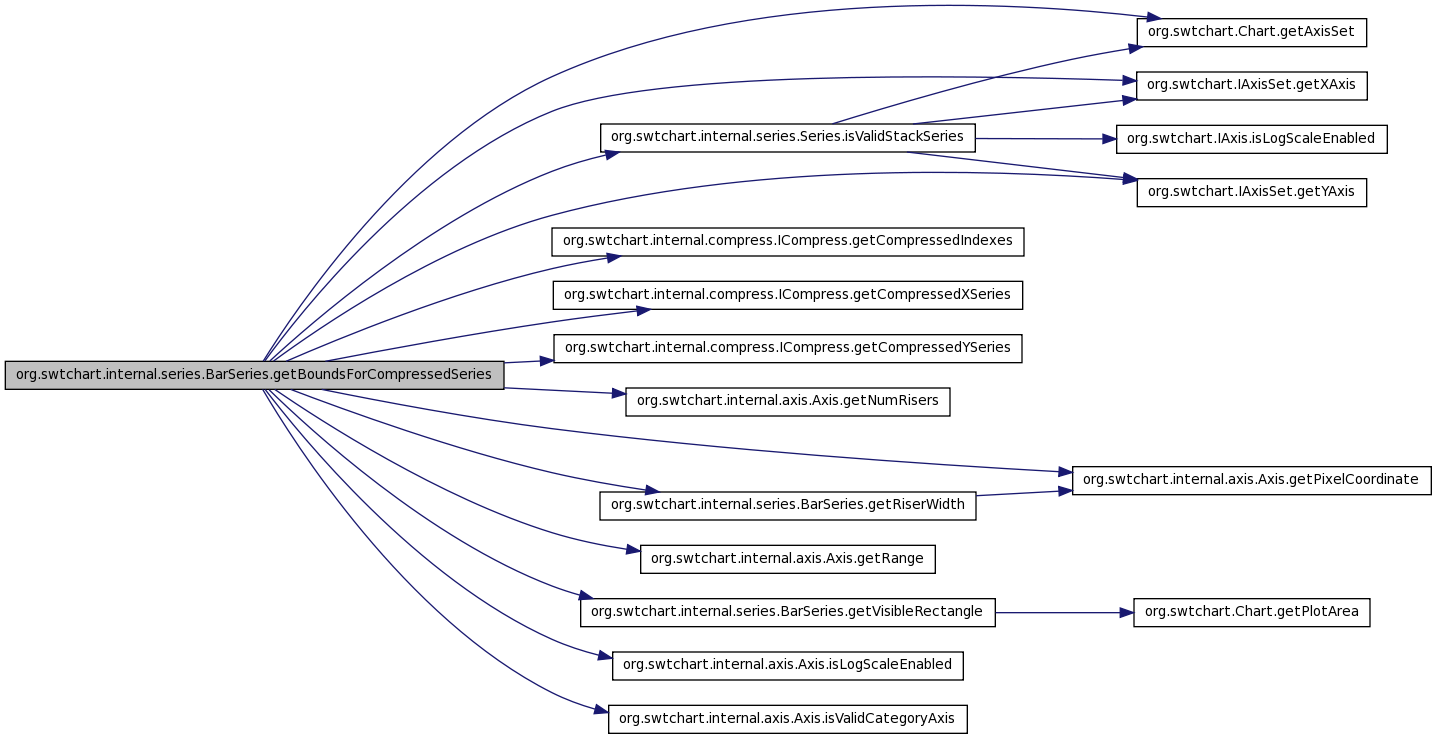

Here is the call graph for this function:

Here is the caller graph for this function:

static Color org.swtchart.internal.series.BarSeries.getFrameColor

(

Color

color

)

[static, private]

Gets the color for riser frame.

The color will be darker or lighter than the given color.

Parameters:

color

the riser color

Returns:

the riser frame color

Definition at line 423 of file BarSeries.java.

Referenced by org.swtchart.internal.series.BarSeries.drawRiser().

Here is the caller graph for this function:

int org.swtchart.internal.series.BarSeries.getRiserWidth	(	double[]	series,
		int	index,
		Axis	xAxis,
		double	min,
		double	max
	)			[private]

Gets the riser width.

Parameters:

	series	the X series
	index	the series index
	xAxis	the X axis
	min	the min value of range
	max	the max value of range

Returns:

the raiser width in pixels

Definition at line 374 of file BarSeries.java.

References org.swtchart.internal.series.BarSeries.barWidth, org.swtchart.internal.series.BarSeries.barWidthStyle, org.swtchart.internal.axis.Axis.getPixelCoordinate(), and org.swtchart.internal.series.BarSeries.padding.

Referenced by org.swtchart.internal.series.BarSeries.getAdjustedRange(), and org.swtchart.internal.series.BarSeries.getBoundsForCompressedSeries().

Here is the call graph for this function:

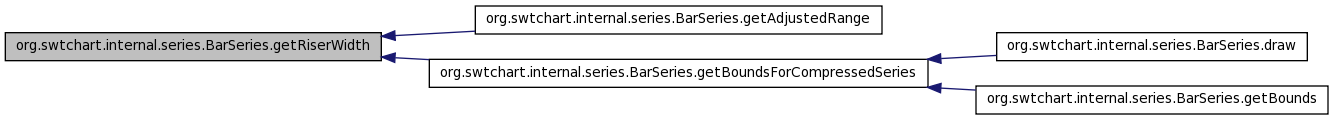

Here is the caller graph for this function:

Rectangle org.swtchart.internal.series.BarSeries.getVisibleRectangle	(	int	x,
		int	y,
		int	width,
		int	height
	)			[private]

Gets the rectangle that is visible part of given rectangle.

Parameters:

	x	The x coordinate
	y	The y coordinate
	width	the width
	height	The height

Returns:

The visible rectangle

Definition at line 270 of file BarSeries.java.

References org.swtchart.internal.series.Series.chart, and org.swtchart.Chart.getPlotArea().

Referenced by org.swtchart.internal.series.BarSeries.getBoundsForCompressedSeries().

Here is the call graph for this function:

Here is the caller graph for this function:

void org.swtchart.internal.series.BarSeries.setBarColor

(

Color

color

)

Sets the bar color.

If null is given, default color will be set.

Parameters:

color

the bar color

Implements org.swtchart.IBarSeries.

Definition at line 139 of file BarSeries.java.

References org.swtchart.internal.series.BarSeries.barColor, and org.swtchart.internal.series.BarSeries.DEFAULT_BAR_COLOR.

void org.swtchart.internal.series.BarSeries.setBarPadding

(

int

padding

)

Sets the bar padding in percentage.

The specified padding is active only when the bar width style is set to BarWidthStyle.STRETCHED.

Parameters:

padding

the bar padding in percentage

Implements org.swtchart.IBarSeries.

Definition at line 119 of file BarSeries.java.

void org.swtchart.internal.series.BarSeries.setBarWidth

(

int

width

)

Sets the bar width in pixels.

The specified bar width is active only when the bar width style is set to BarWidthStyle.FIXED.

Parameters:

width

the bar width in pixels

Implements org.swtchart.IBarSeries.

Definition at line 102 of file BarSeries.java.

References org.swtchart.internal.series.BarSeries.barWidth, and org.swtchart.internal.series.BarSeries.padding.

void org.swtchart.internal.series.BarSeries.setBarWidthStyle

(

BarWidthStyle

style

)

Definition at line 88 of file BarSeries.java.

References org.swtchart.internal.series.BarSeries.barWidthStyle.

void org.swtchart.internal.series.BarSeries.setCompressor

(

)

[protected, virtual]

Sets the compressor.

Implements org.swtchart.internal.series.Series.

Definition at line 318 of file BarSeries.java.

References org.swtchart.internal.series.Series.compressor, and org.swtchart.internal.series.Series.isXMonotoneIncreasing.

void org.swtchart.internal.series.BarSeries.setRiserIndex

(

int

riserIndex

)

[protected]

Sets the index of riser in a category.

Parameters:

riserIndex

the index of riser in a category

Definition at line 310 of file BarSeries.java.

---

Member Data Documentation

final int org.swtchart.internal.series.BarSeries.ALPHA = 0xD0 [static, private]

the alpha value

Definition at line 50 of file BarSeries.java.

Referenced by org.swtchart.internal.series.BarSeries.drawRiser().

Color org.swtchart.internal.series.BarSeries.barColor [private]

the riser color

Definition at line 32 of file BarSeries.java.

Referenced by org.swtchart.internal.series.BarSeries.BarSeries(), org.swtchart.internal.series.BarSeries.getBarColor(), and org.swtchart.internal.series.BarSeries.setBarColor().

int org.swtchart.internal.series.BarSeries.barWidth [private]

the bar width

Definition at line 35 of file BarSeries.java.

Referenced by org.swtchart.internal.series.BarSeries.BarSeries(), org.swtchart.internal.series.BarSeries.getBarWidth(), org.swtchart.internal.series.BarSeries.getRiserWidth(), and org.swtchart.internal.series.BarSeries.setBarWidth().

BarWidthStyle org.swtchart.internal.series.BarSeries.barWidthStyle [private]

the bar width style

Definition at line 41 of file BarSeries.java.

Referenced by org.swtchart.internal.series.BarSeries.BarSeries(), org.swtchart.internal.series.BarSeries.getBarWidthStyle(), org.swtchart.internal.series.BarSeries.getRiserWidth(), and org.swtchart.internal.series.BarSeries.setBarWidthStyle().

final int org.swtchart.internal.series.BarSeries.DEFAULT_BAR_COLOR = SWT.COLOR_CYAN [static, private]

the default bar color

Definition at line 56 of file BarSeries.java.

Referenced by org.swtchart.internal.series.BarSeries.BarSeries(), org.swtchart.internal.series.BarSeries.getBarColor(), and org.swtchart.internal.series.BarSeries.setBarColor().

final int org.swtchart.internal.series.BarSeries.INITIAL_BAR_WIDTH = 20 [static]

the initial bar width in pixels

Definition at line 44 of file BarSeries.java.

final int org.swtchart.internal.series.BarSeries.INITIAL_PADDING = 20 [static]

the initial bar padding in percentage

Definition at line 47 of file BarSeries.java.

Referenced by org.swtchart.internal.series.BarSeries.BarSeries().

final int org.swtchart.internal.series.BarSeries.MARGIN_AT_MIN_MAX_PLOT = 6 [static, private]

the margin in pixels attached at the minimum/maximum plot

Definition at line 53 of file BarSeries.java.

Referenced by org.swtchart.internal.series.BarSeries.getAdjustedRange().

int org.swtchart.internal.series.BarSeries.padding [private]

the padding

Definition at line 38 of file BarSeries.java.

Referenced by org.swtchart.internal.series.BarSeries.BarSeries(), org.swtchart.internal.series.BarSeries.getBarPadding(), org.swtchart.internal.series.BarSeries.getRiserWidth(), and org.swtchart.internal.series.BarSeries.setBarWidth().

int org.swtchart.internal.series.BarSeries.riserIndex [private]

the riser index in a category

Definition at line 29 of file BarSeries.java.

Referenced by org.swtchart.internal.series.BarSeries.getBoundsForCompressedSeries().

---

The documentation for this class was generated from the following file:

• org.swtchart/src/org/swtchart/internal/series/BarSeries.java
