org.swtchart.IAxis Interface Reference

An axis which is composed of title and tick. More...

Inheritance diagram for org.swtchart.IAxis:

Public Types
enum	Direction { X, Y }
	An axis direction. More...
enum	Position { Primary, Secondary }
	An axis position. More...
Public Member Functions
int	getId ()
	Gets the axis id.
Direction	getDirection ()
	Gets the axis direction.
Position	getPosition ()
	Gets the axis position.
void	setPosition (Position position)
	Sets the axis position.
void	setRange (Range range)
	Sets the axis range.
Range	getRange ()
	Gets the axis range.
ITitle	getTitle ()
	Gets the axis title.
IAxisTick	getTick ()
	Gets the axis tick.
void	enableLogScale (boolean enabled) throws IllegalStateException
	Enables the log scale.
boolean	isLogScaleEnabled ()
	Gets the state indicating if log scale is enabled.
IGrid	getGrid ()
	Gets the grid.
void	adjustRange ()
	Adjusts the axis range to the series belonging to the axis, so that all series are completely shown.
void	zoomIn ()
	Zooms in the axis.
void	zoomIn (double coordinate)
	Zooms in the axis at the given coordinate.
void	zoomOut ()
	Zooms out the axis.
void	zoomOut (double coordinate)
	Zooms out the axis at the given coordinate.
void	scrollUp ()
	Scrolls up the axis.
void	scrollDown ()
	Scrolls up the axis.
void	enableCategory (boolean enabled)
	Enables category.
boolean	isCategoryEnabled ()
	Gets the state indicating if category is enabled.
void	setCategorySeries (String[] series)
	Sets the category series.
String[]	getCategorySeries ()
	Gets the category series.
int	getPixelCoordinate (double dataCoordinate)
	Gets the pixel coordinate corresponding to the given data coordinate.
double	getDataCoordinate (int pixelCoordinate)
	Gets the data coordinate corresponding to the given pixel coordinate on plot area.
void	addDisposeListener (IDisposeListener listener)
	Adds the dispose listener.

Detailed Description

An axis which is composed of title and tick.

Grid is associated with axis.

Definition at line 12 of file IAxis.java.

Member Enumeration Documentation

enum org::swtchart::IAxis::Direction

An axis direction.

Enumerator:

X	the constant to represent X axis
Y	the constant to represent Y axis

Definition at line 15 of file IAxis.java.

enum org::swtchart::IAxis::Position

An axis position.

Enumerator:

Primary	bottom or left side of chart
Secondary	top or right side of chart

Definition at line 25 of file IAxis.java.

Member Function Documentation

void org.swtchart.IAxis.addDisposeListener ( IDisposeListener listener )

Adds the dispose listener.

The newly created color or font for axis can be disposed with the dispose listener when they are no longer needed.

Parameters:

listener

the dispose listener

Implemented in org.swtchart.internal.axis.Axis.

Referenced by org.swtchart.ext.internal.properties.AxisTickPage.apply(), and org.swtchart.ext.internal.properties.AxisPage.apply().

Here is the caller graph for this function:

void org.swtchart.IAxis.adjustRange ( )

Adjusts the axis range to the series belonging to the axis, so that all series are completely shown.

Implemented in org.swtchart.internal.axis.Axis.

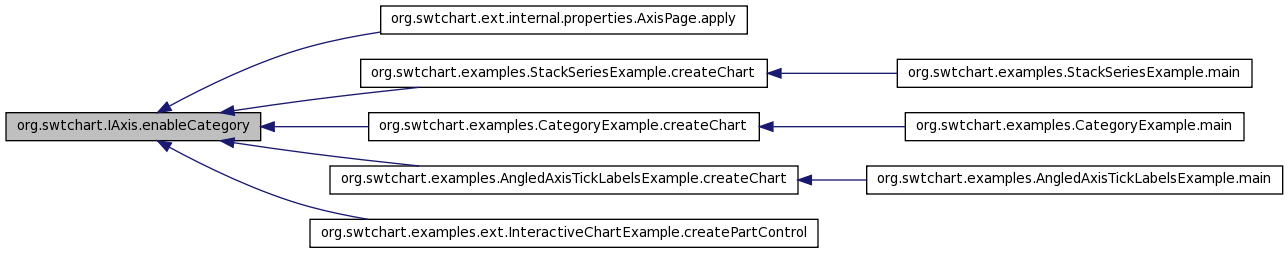

void org.swtchart.IAxis.enableCategory ( boolean enabled )

Enables category.

Category is applicable only for X axis. If enabling category, log scale will be disabled. If category series are not yet set, category won't be enabled.

Parameters:

enabled

true if enabling category

Implemented in org.swtchart.internal.axis.Axis.

Referenced by org.swtchart.ext.internal.properties.AxisPage.apply(), org.swtchart.examples.StackSeriesExample.createChart(), org.swtchart.examples.CategoryExample.createChart(), org.swtchart.examples.AngledAxisTickLabelsExample.createChart(), and org.swtchart.examples.ext.InteractiveChartExample.createPartControl().

Here is the caller graph for this function:

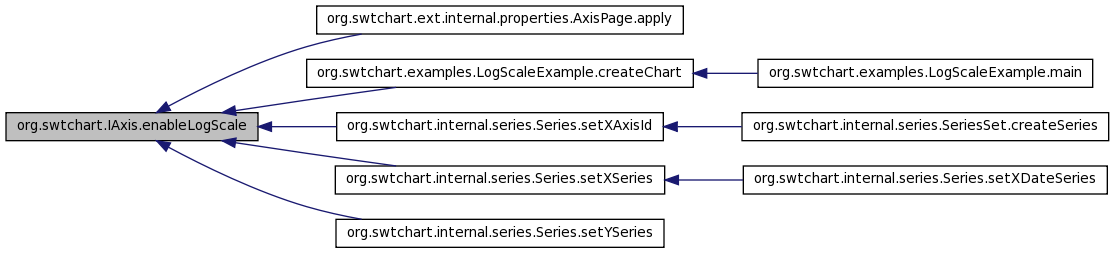

void org.swtchart.IAxis.enableLogScale ( boolean enabled ) throws IllegalStateException

Enables the log scale.

If enabling log scale, stacking trace and category axis will be disabled.

Parameters:

enabled

true if enabling log scales

Exceptions:

IllegalStateException

if minimum value of series belonging to this axis is less than zero.

Implemented in org.swtchart.internal.axis.Axis.

Referenced by org.swtchart.ext.internal.properties.AxisPage.apply(), org.swtchart.examples.LogScaleExample.createChart(), org.swtchart.internal.series.Series.setXAxisId(), org.swtchart.internal.series.Series.setXSeries(), and org.swtchart.internal.series.Series.setYSeries().

Here is the caller graph for this function:

String [] org.swtchart.IAxis.getCategorySeries ( )

Gets the category series.

If the category series haven't been set yet, null will be returned.

Returns:: the category series

Implemented in org.swtchart.internal.axis.Axis.

double org.swtchart.IAxis.getDataCoordinate ( int pixelCoordinate )

Gets the data coordinate corresponding to the given pixel coordinate on plot area.

Parameters:

pixelCoordinate

the pixel coordinate on plot area

Returns:: the data coordinate

Implemented in org.swtchart.internal.axis.Axis.

Referenced by org.swtchart.examples.advanced.PxielToDataConversionExample.createChart(), and org.swtchart.ext.InteractiveChart.setRange().

Here is the caller graph for this function:

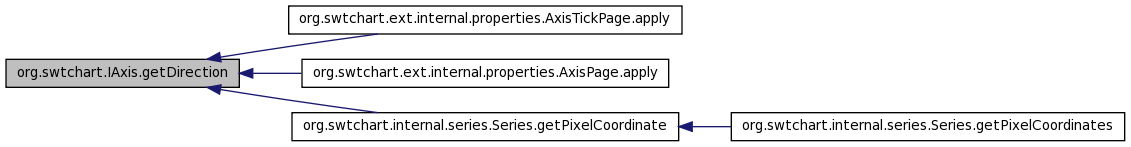

Direction org.swtchart.IAxis.getDirection ( )

Gets the axis direction.

The axis direction is set when axis is created, and won't be changed.

Returns:: the axis direction

Implemented in org.swtchart.internal.axis.Axis.

Referenced by org.swtchart.ext.internal.properties.AxisTickPage.apply(), org.swtchart.ext.internal.properties.AxisPage.apply(), and org.swtchart.internal.series.Series.getPixelCoordinate().

Here is the caller graph for this function:

IGrid org.swtchart.IAxis.getGrid ( )

Gets the grid.

The gird interval is identical with the position of axis tick marks. The horizontal grid is accessible from vertical axis, and the vertical grid is accessible from horizontal axis.

Returns:: grid the grid

Implemented in org.swtchart.internal.axis.Axis.

Referenced by org.swtchart.ext.internal.properties.GridPage.apply(), and org.swtchart.ext.internal.properties.GridPage.selectInitialValues().

Here is the caller graph for this function:

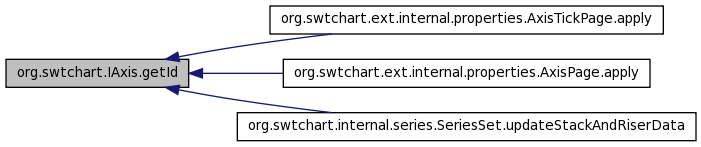

int org.swtchart.IAxis.getId ( )

Gets the axis id.

An axis id is automatically assigned when axis is created.

Returns:: the axis id

Implemented in org.swtchart.internal.axis.Axis.

Referenced by org.swtchart.ext.internal.properties.AxisTickPage.apply(), org.swtchart.ext.internal.properties.AxisPage.apply(), and org.swtchart.internal.series.SeriesSet.updateStackAndRiserData().

Here is the caller graph for this function:

int org.swtchart.IAxis.getPixelCoordinate ( double dataCoordinate )

Gets the pixel coordinate corresponding to the given data coordinate.

Parameters:

dataCoordinate

the data coordinate

Returns:: the pixel coordinate on plot area

Implemented in org.swtchart.internal.axis.Axis.

Referenced by org.swtchart.examples.advanced.DataToPixelConversionExample.createChart(), and org.swtchart.internal.series.Series.getPixelCoordinate().

Here is the caller graph for this function:

Position org.swtchart.IAxis.getPosition ( )

Gets the axis position.

Returns:: the axis position

Implemented in org.swtchart.internal.axis.Axis.

Referenced by org.swtchart.ext.internal.properties.AxisPage.selectInitialValues().

Here is the caller graph for this function:

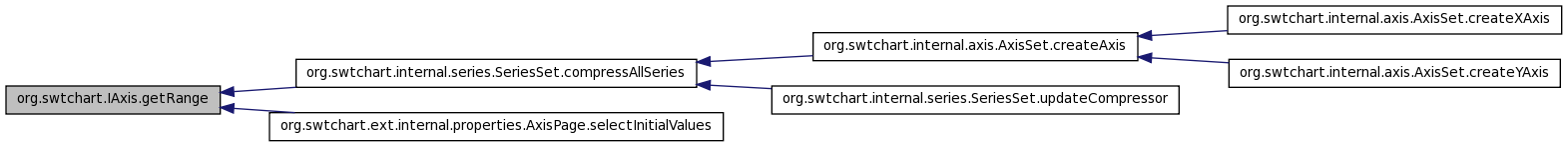

Range org.swtchart.IAxis.getRange ( )

Gets the axis range.

Returns:: the axis range

Implemented in org.swtchart.internal.axis.Axis.

Referenced by org.swtchart.internal.series.SeriesSet.compressAllSeries(), and org.swtchart.ext.internal.properties.AxisPage.selectInitialValues().

Here is the caller graph for this function:

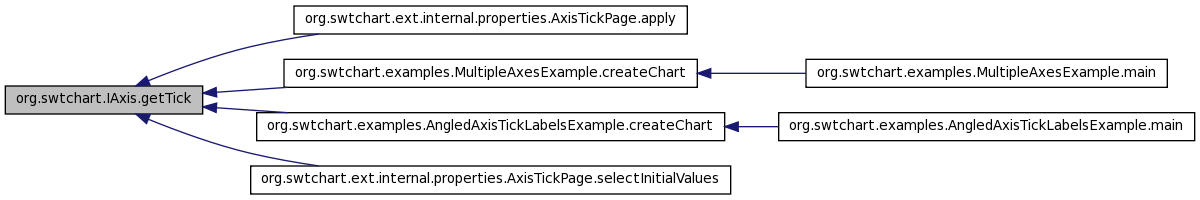

IAxisTick org.swtchart.IAxis.getTick ( )

Gets the axis tick.

Returns:: the axis tick

Implemented in org.swtchart.internal.axis.Axis.

Referenced by org.swtchart.ext.internal.properties.AxisTickPage.apply(), org.swtchart.examples.MultipleAxesExample.createChart(), org.swtchart.examples.AngledAxisTickLabelsExample.createChart(), and org.swtchart.ext.internal.properties.AxisTickPage.selectInitialValues().

Here is the caller graph for this function:

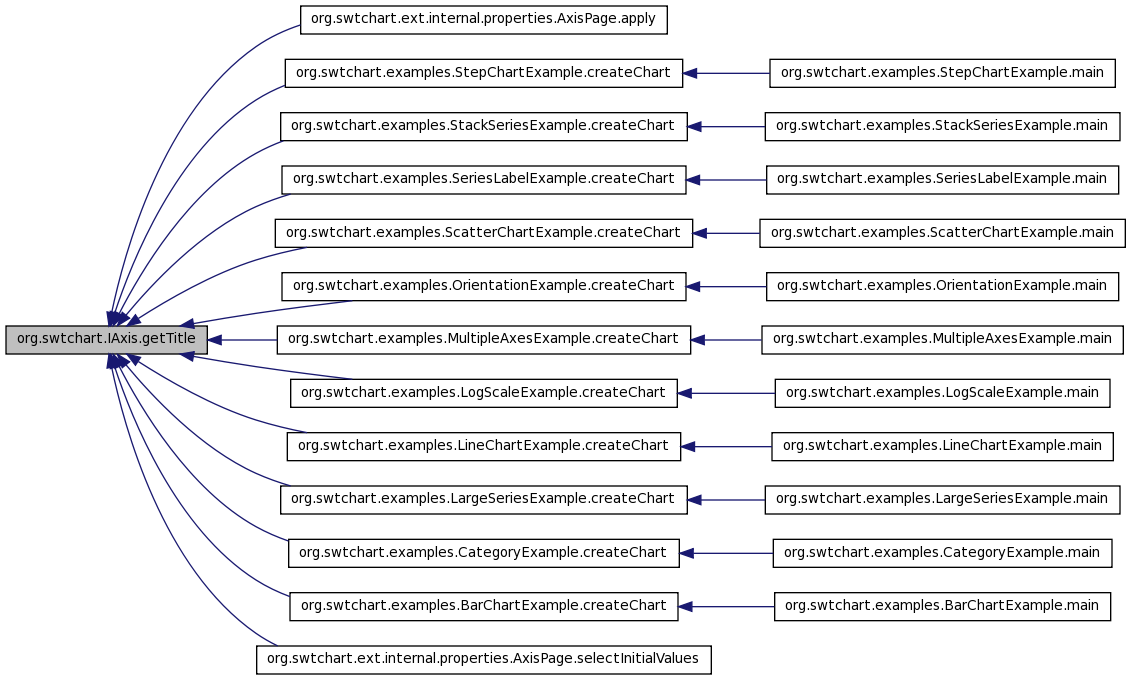

ITitle org.swtchart.IAxis.getTitle ( )

Gets the axis title.

Returns:: the axis title

Implemented in org.swtchart.internal.axis.Axis.

Here is the caller graph for this function:

boolean org.swtchart.IAxis.isCategoryEnabled ( )

Gets the state indicating if category is enabled.

Returns:: true if category is enabled

Implemented in org.swtchart.internal.axis.Axis.

Referenced by org.swtchart.internal.series.Series.getPixelCoordinate(), and org.swtchart.ext.internal.properties.AxisPage.selectInitialValues().

Here is the caller graph for this function:

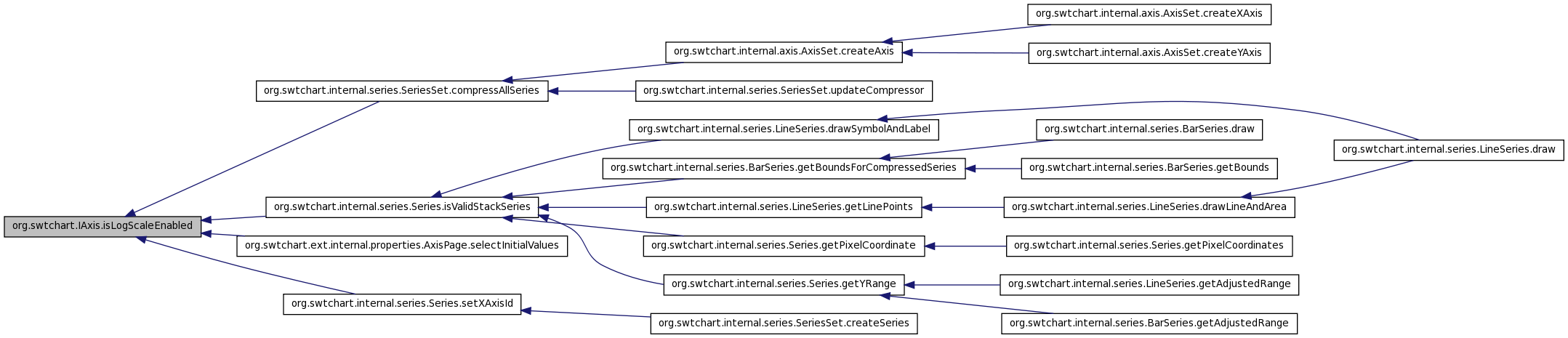

boolean org.swtchart.IAxis.isLogScaleEnabled ( )

Gets the state indicating if log scale is enabled.

Returns:: true if log scale is enabled

Implemented in org.swtchart.internal.axis.Axis.

Referenced by org.swtchart.internal.series.SeriesSet.compressAllSeries(), org.swtchart.internal.series.Series.isValidStackSeries(), org.swtchart.ext.internal.properties.AxisPage.selectInitialValues(), and org.swtchart.internal.series.Series.setXAxisId().

Here is the caller graph for this function:

void org.swtchart.IAxis.scrollDown ( )

Scrolls up the axis.

Implemented in org.swtchart.internal.axis.Axis.

void org.swtchart.IAxis.scrollUp ( )

Scrolls up the axis.

Implemented in org.swtchart.internal.axis.Axis.

void org.swtchart.IAxis.setCategorySeries ( String[] series )

Sets the category series.

In order to enable category series, enableCategoryAxis(true) has to be invoked.

Parameters:

series

the category series

Implemented in org.swtchart.internal.axis.Axis.

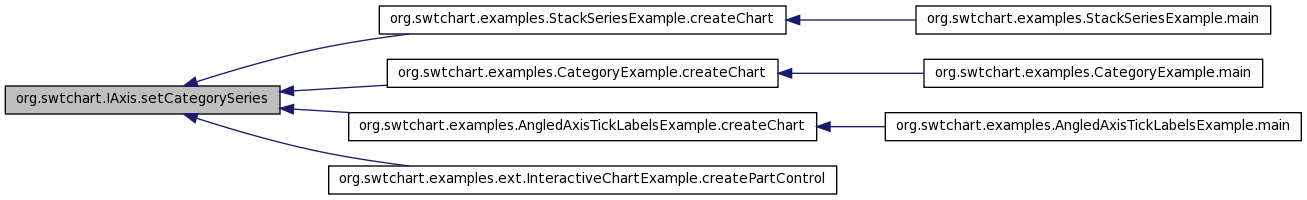

Referenced by org.swtchart.examples.StackSeriesExample.createChart(), org.swtchart.examples.CategoryExample.createChart(), org.swtchart.examples.AngledAxisTickLabelsExample.createChart(), and org.swtchart.examples.ext.InteractiveChartExample.createPartControl().

Here is the caller graph for this function:

void org.swtchart.IAxis.setPosition ( Position position )

Sets the axis position.

Parameters:

position

the axis position

Referenced by org.swtchart.ext.internal.properties.AxisPage.apply(), and org.swtchart.examples.MultipleAxesExample.createChart().

Here is the caller graph for this function:

void org.swtchart.IAxis.setRange ( Range range )

Sets the axis range.

Parameters:

range

the axis range

Implemented in org.swtchart.internal.axis.Axis.

Referenced by org.swtchart.ext.internal.properties.AxisPage.apply(), and org.swtchart.ext.InteractiveChart.setRange().

Here is the caller graph for this function:

void org.swtchart.IAxis.zoomIn ( double coordinate )

Zooms in the axis at the given coordinate.

Parameters:

coordinate

the coordinate

Implemented in org.swtchart.internal.axis.Axis.

void org.swtchart.IAxis.zoomIn ( )

Zooms in the axis.

Implemented in org.swtchart.internal.axis.Axis.

void org.swtchart.IAxis.zoomOut ( double coordinate )

Zooms out the axis at the given coordinate.

Parameters:

coordinate

the coordinate

Implemented in org.swtchart.internal.axis.Axis.

void org.swtchart.IAxis.zoomOut ( )

Zooms out the axis.

Implemented in org.swtchart.internal.axis.Axis.

The documentation for this interface was generated from the following file:

org.swtchart/src/org/swtchart/IAxis.java
