org.swtchart.internal.PlotArea Class Reference

Plot area to draw series and grids. More...

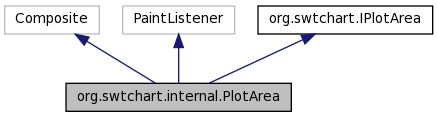

Inheritance diagram for org.swtchart.internal.PlotArea:

[legend]

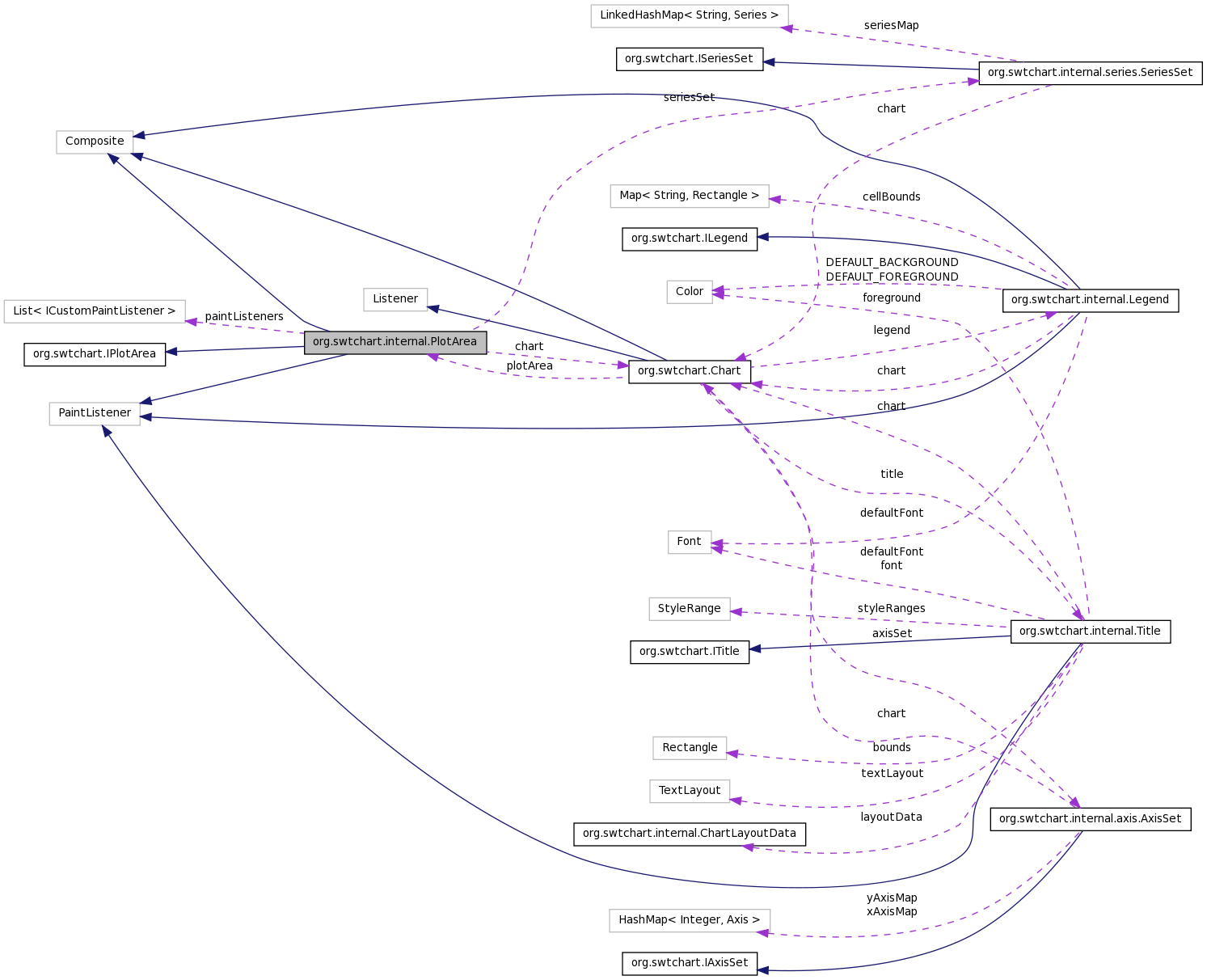

Collaboration diagram for org.swtchart.internal.PlotArea:

[legend]

List of all members.

Public Member Functions
	PlotArea (Chart chart, int style)
	Constructor.
ISeriesSet	getSeriesSet ()
	Gets the set of series.
void	setBounds (int x, int y, int width, int height)
void	setBackground (Color color)
void	addCustomPaintListener (ICustomPaintListener listener)
	Adds the custom paint listener.
void	removeCustomPaintListener (ICustomPaintListener listener)
	Removes the custom paint listener.
void	paintControl (PaintEvent e)
void	dispose ()
Protected Attributes
Chart	chart
	the chart
SeriesSet	seriesSet
	the set of plots
Package Attributes
List< ICustomPaintListener >	paintListeners
	the custom paint listeners
Static Private Attributes
static final int	DEFAULT_BACKGROUND = SWT.COLOR_WHITE
	the default background color

---

Detailed Description

Plot area to draw series and grids.

Definition at line 34 of file PlotArea.java.

---

Constructor & Destructor Documentation

org.swtchart.internal.PlotArea.PlotArea	(	Chart	chart,
		int	style
	)

Constructor.

Parameters:

	chart	the chart
	style	the style

Definition at line 56 of file PlotArea.java.

References org.swtchart.internal.PlotArea.DEFAULT_BACKGROUND, org.swtchart.internal.PlotArea.paintListeners, org.swtchart.internal.PlotArea.seriesSet, and org.swtchart.internal.PlotArea.setBackground().

Here is the call graph for this function:

---

Member Function Documentation

void org.swtchart.internal.PlotArea.addCustomPaintListener

(

ICustomPaintListener

listener

)

Adds the custom paint listener.

Parameters:

listener

the custom paint listener

Implements org.swtchart.IPlotArea.

Definition at line 102 of file PlotArea.java.

References org.swtchart.internal.PlotArea.paintListeners.

void org.swtchart.internal.PlotArea.dispose

(

)

Definition at line 163 of file PlotArea.java.

References org.swtchart.internal.series.SeriesSet.dispose(), and org.swtchart.internal.PlotArea.seriesSet.

Referenced by org.swtchart.Chart.dispose().

Here is the call graph for this function:

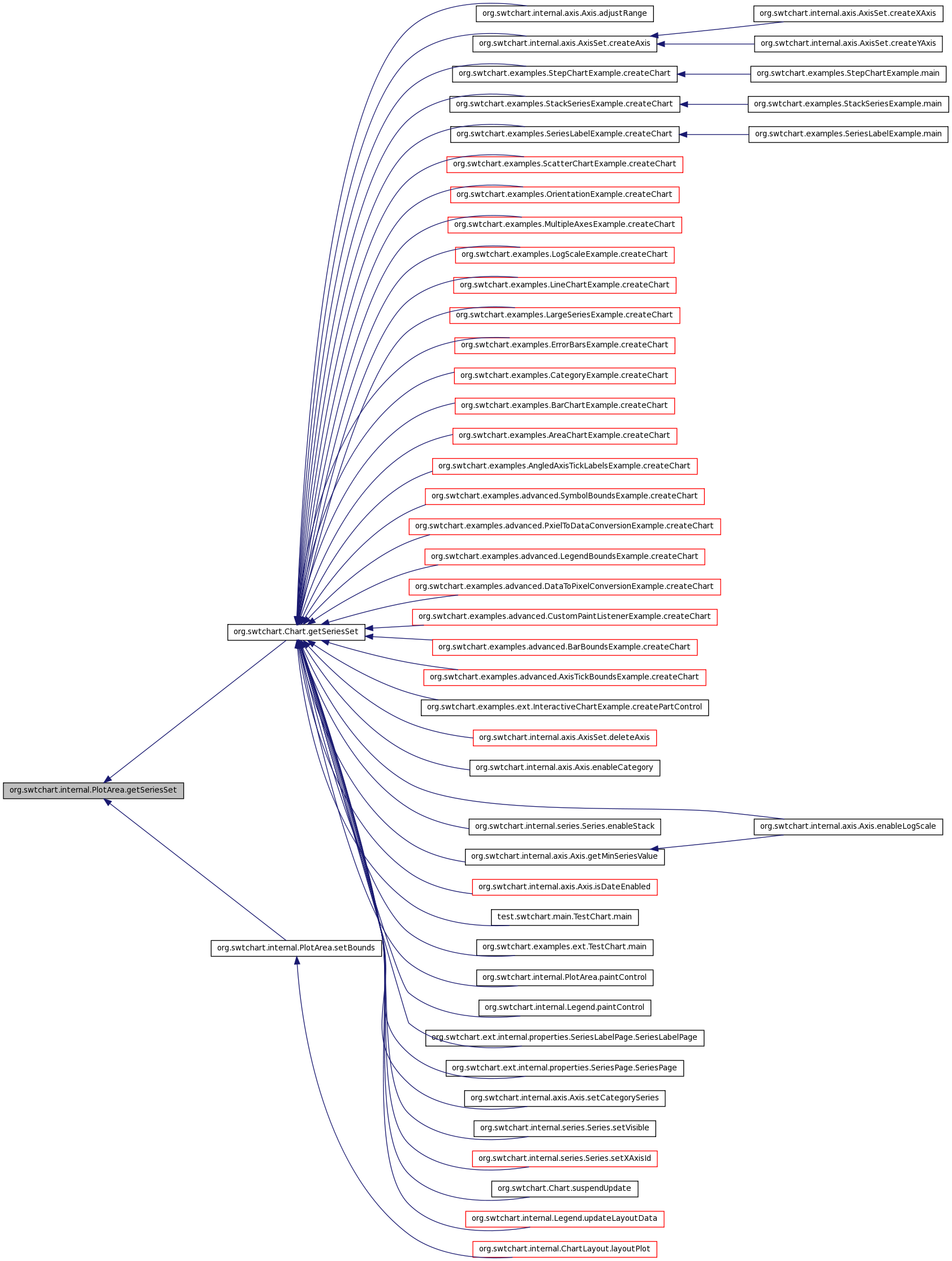

Here is the caller graph for this function:

ISeriesSet org.swtchart.internal.PlotArea.getSeriesSet

(

)

Gets the set of series.

Returns:

the set of series

Definition at line 73 of file PlotArea.java.

References org.swtchart.internal.PlotArea.seriesSet.

Referenced by org.swtchart.Chart.getSeriesSet(), and org.swtchart.internal.PlotArea.setBounds().

Here is the caller graph for this function:

void org.swtchart.internal.PlotArea.paintControl

(

PaintEvent

e

)

Definition at line 116 of file PlotArea.java.

References org.swtchart.internal.PlotArea.chart, org.swtchart.IAxisSet.getAxes(), org.swtchart.Chart.getAxisSet(), org.swtchart.ISeriesSet.getSeries(), org.swtchart.Chart.getSeriesSet(), and org.swtchart.internal.PlotArea.paintListeners.

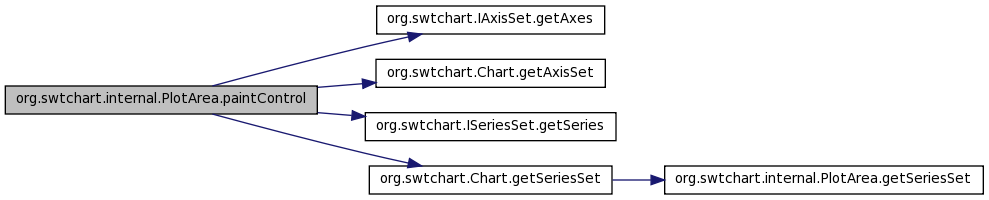

Here is the call graph for this function:

void org.swtchart.internal.PlotArea.removeCustomPaintListener

(

ICustomPaintListener

listener

)

Removes the custom paint listener.

Parameters:

listener

the custom paint listener

Implements org.swtchart.IPlotArea.

Definition at line 109 of file PlotArea.java.

References org.swtchart.internal.PlotArea.paintListeners.

void org.swtchart.internal.PlotArea.setBackground

(

Color

color

)

Definition at line 90 of file PlotArea.java.

References org.swtchart.internal.PlotArea.DEFAULT_BACKGROUND.

Referenced by org.swtchart.internal.PlotArea.PlotArea(), and org.swtchart.Chart.setBackgroundInPlotArea().

Here is the caller graph for this function:

void org.swtchart.internal.PlotArea.setBounds	(	int	x,
		int	y,
		int	width,
		int	height
	)

Definition at line 81 of file PlotArea.java.

References org.swtchart.internal.PlotArea.getSeriesSet().

Referenced by org.swtchart.internal.ChartLayout.layoutPlot().

Here is the call graph for this function:

Here is the caller graph for this function:

---

Member Data Documentation

Chart org.swtchart.internal.PlotArea.chart [protected]

the chart

Definition at line 37 of file PlotArea.java.

Referenced by org.swtchart.internal.PlotArea.paintControl().

final int org.swtchart.internal.PlotArea.DEFAULT_BACKGROUND = SWT.COLOR_WHITE [static, private]

the default background color

Definition at line 46 of file PlotArea.java.

Referenced by org.swtchart.internal.PlotArea.PlotArea(), and org.swtchart.internal.PlotArea.setBackground().

List<ICustomPaintListener> org.swtchart.internal.PlotArea.paintListeners [package]

the custom paint listeners

Definition at line 43 of file PlotArea.java.

Referenced by org.swtchart.internal.PlotArea.addCustomPaintListener(), org.swtchart.internal.PlotArea.paintControl(), org.swtchart.internal.PlotArea.PlotArea(), and org.swtchart.internal.PlotArea.removeCustomPaintListener().

SeriesSet org.swtchart.internal.PlotArea.seriesSet [protected]

the set of plots

Definition at line 40 of file PlotArea.java.

Referenced by org.swtchart.internal.PlotArea.dispose(), org.swtchart.internal.PlotArea.getSeriesSet(), and org.swtchart.internal.PlotArea.PlotArea().

---

The documentation for this class was generated from the following file:

• org.swtchart/src/org/swtchart/internal/PlotArea.java
